Light flashes or flares that lighten up a part of the solar disk and corona and plasma clouds that are ejected from the Sun may produce a stream of high energy particles that can promptly arrive to the Earth. Those particles bump into satellites that are on their path through space. Satellites outside the protecting Earth magnetic shield are vulnerable and may be damaged badly. Satellites can be even lost. You can imagine what would happen if an astronaut receives such a violent dose of particles. A Solar Energetic Particle (SEP) event can be indeed potentially lethal.
These proton storms cause also troubles closer to Earth. The electrically charged particles can catch up with an Earth magnetic field line and circle to the poles where they interrupt for example the communication between airplanes and the ground control. In this situation, the routes of the airplanes are shifted to regions away from the poles. This detouring is a costly affair. An efficient alert system could be helpful.
A group of international scientific institutes and universities developed a SEP forecast as an answer to this threat from space. When the measured data and solar parameters indicate that it is likely that the Earth will be under attack of energetic particles, an alert is sent. The alert combines two elements: an estimate of the probability that an SEP event will be observed at Earth and a forecast of the impact it will have.
The project in which this alert-system is developed, is called COMESEP, COronal Mass Ejections and Solar Energetic Particles (http://www.comesep.eu - or in a nutshell - http://www.comesep.eu/images/COMESEPDOCS/PUBLIC/Media/COMESEP-FP7_Project_Brochure.pdf ). The leading lady is Norma Crosby from the Belgian Institute for Space Aeronomy, BIRA-IASB, a partner of the STCE.
You can subscribe for this alert: http://www.sidc.be/registration/registration_main.php
A warned person is worth two.
Solar (flaring) activity evolved from 'low' to 'very low' during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed: http://proba2.oma.be/ssa.
This page also lists the recorded flaring events.
A SWAP weekly overview movie can be found here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR175_Jul29toAug04_2013/2013_07_29_00_01_38_2013_08_04_23_17_35_SWAP_174-hq.mp4.
Before providing details about this week’s events, a follow-on on previous week’s Friday July 26th prominence eruption is presented, after some extra processing:

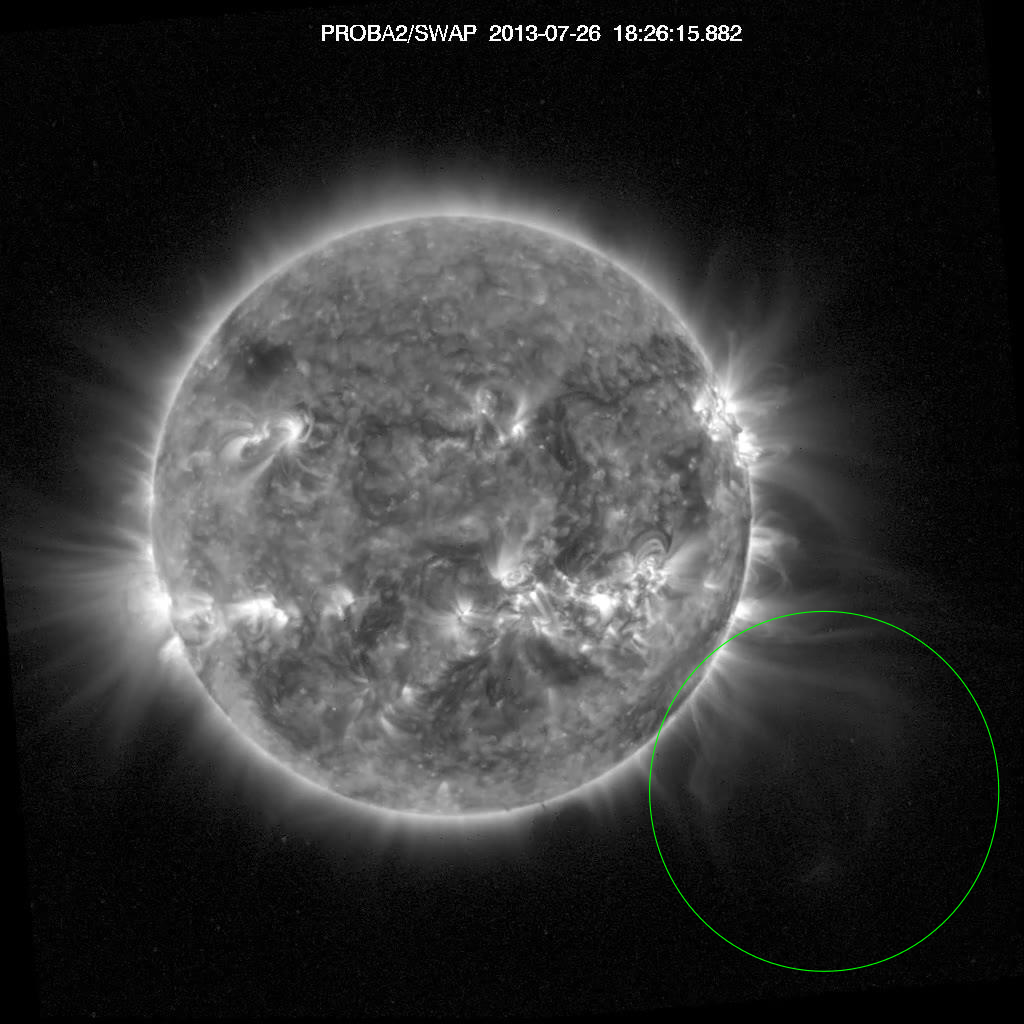

Prominence Eruption on South West Limb @ 18:26 - SWAP processed image

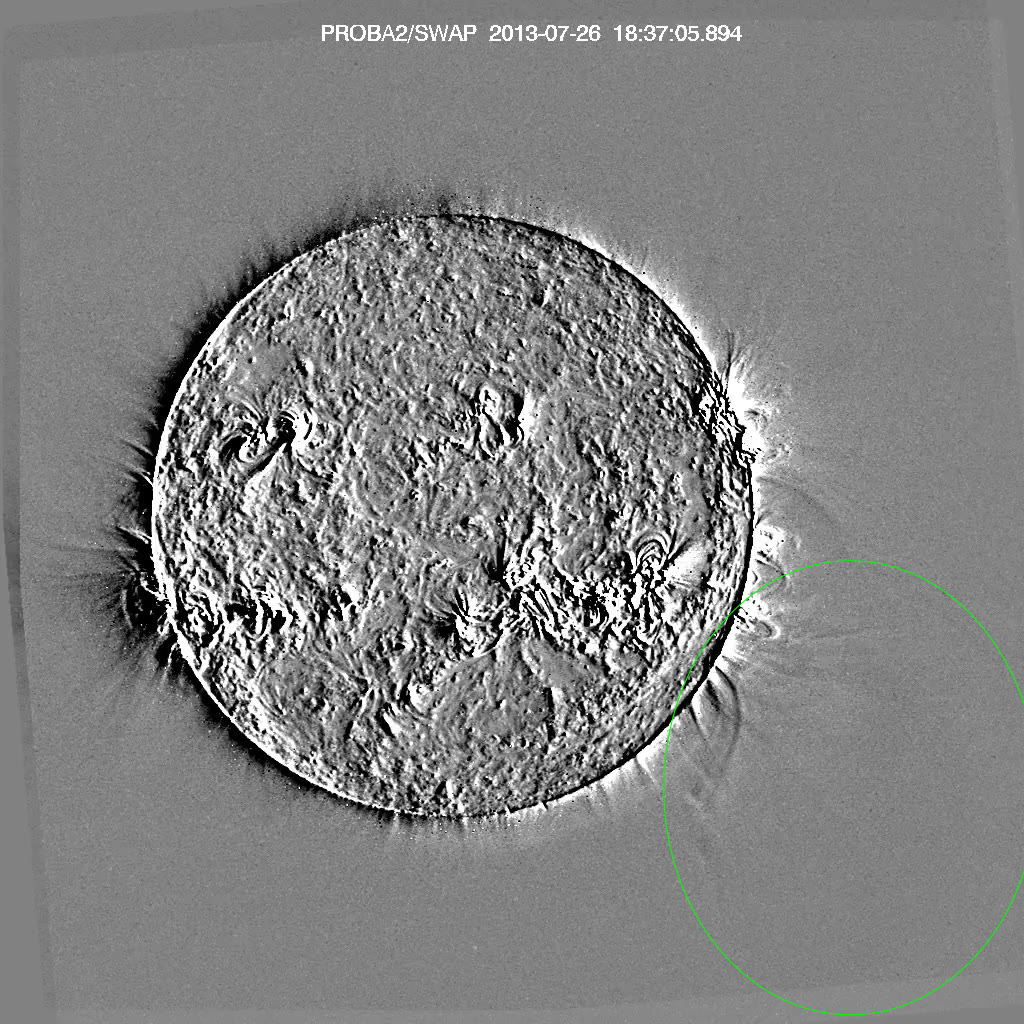

Prominence Eruption on South West Limb @ 18:37 - SWAP processed difference image
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR174_Jul22toJul28_2013/Events/Prominence_Eruption/20130726_PromErupt_1837_swap_diff_offpoint.mp4 (SWAP174; HelioViewer.org) (SWAP processed difference movie)
Details about some of this week’s events, can be found further below.

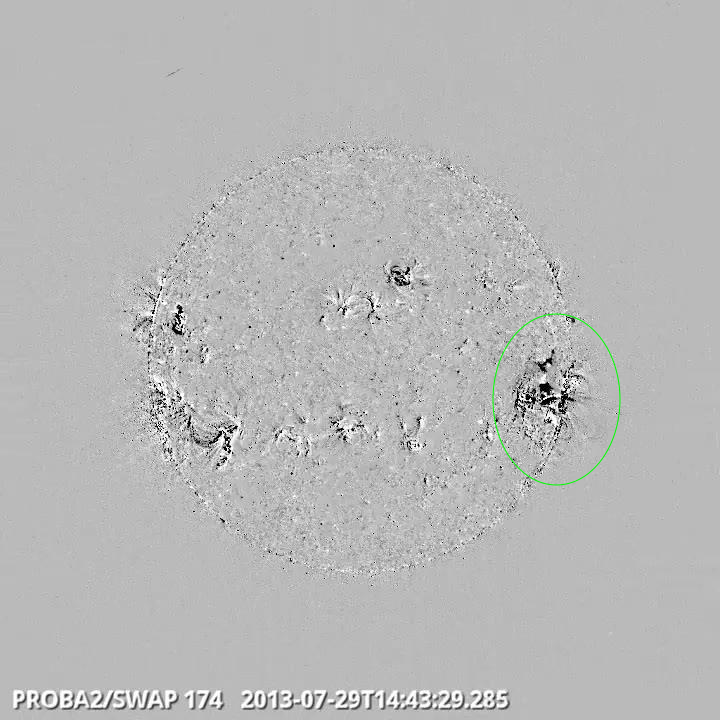

Eruption in South West Quadrant @ 14:43 - SWAP difference image

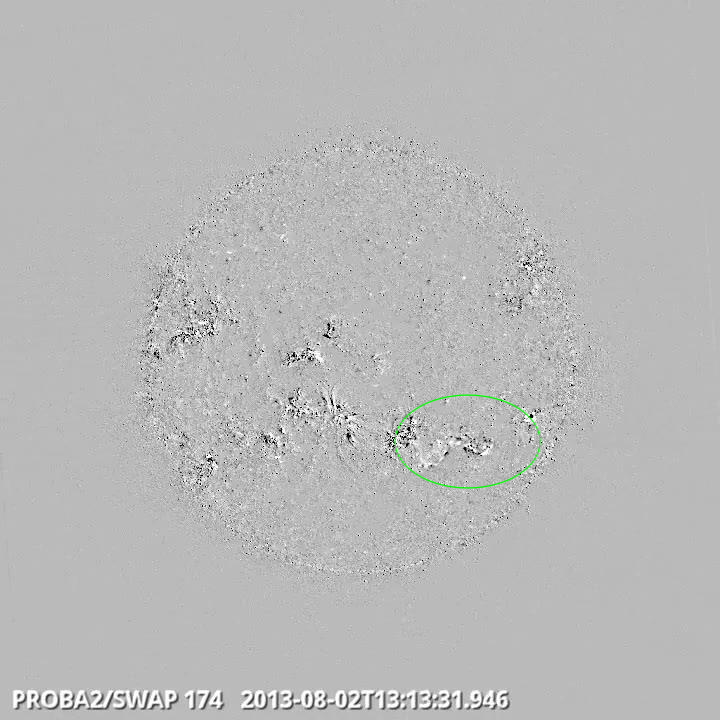

Eruption in South West Quadrant @ 13:13 - SWAP difference image
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR175_Jul29toAug04_2013/Events/20130802_EruptionSouthWestQuad_1313_swap_diff.mp4 (SWAP difference movie)

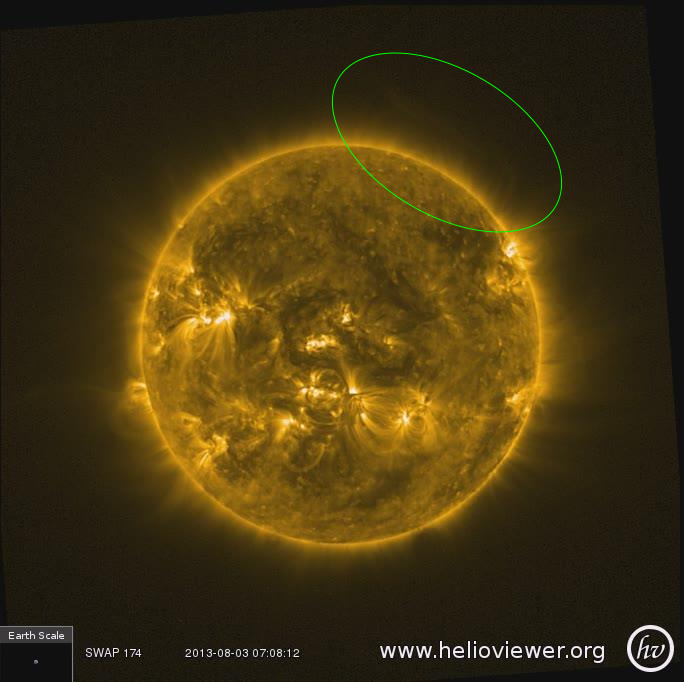

Prominence Eruption on North West Limb @ 07:08 - SWAP normal image
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR175_Jul29toAug04_2013/Events/20130803_PromEruptionNorthWestLimb_0708_swap_movie.mp4 (SWAP normal movie)

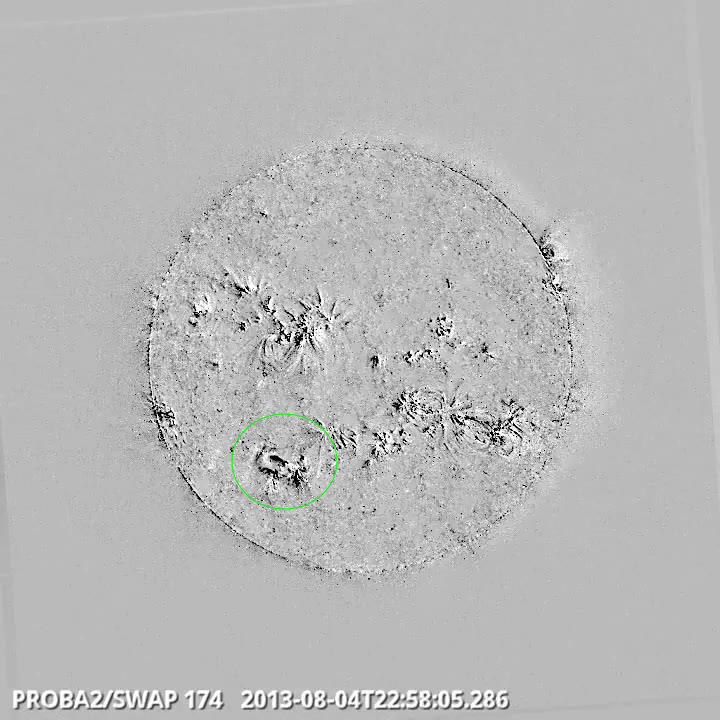

Eruption in South East Quadrant @ 22:58 - SWAP difference image

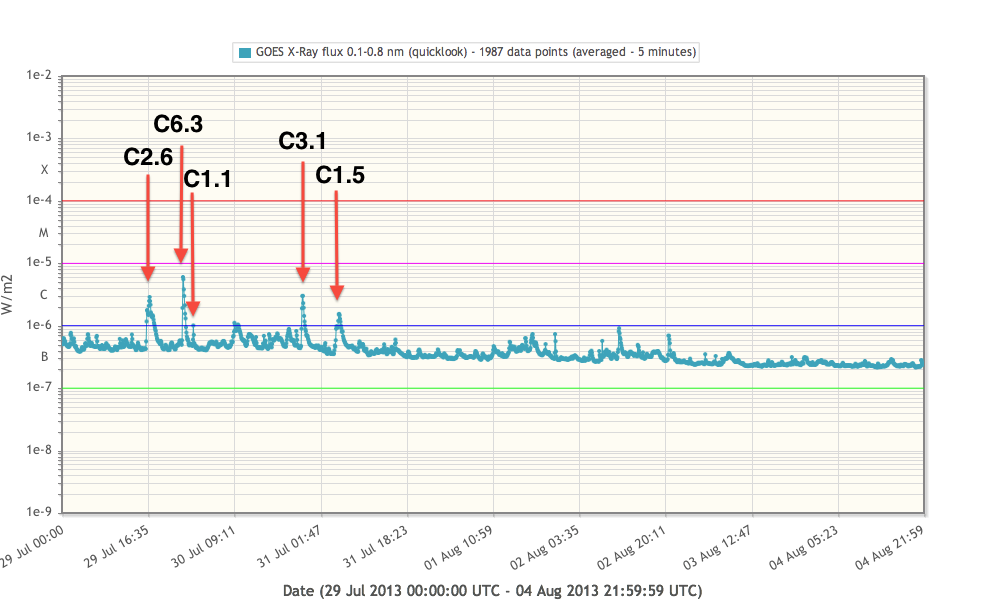

Flaring activity was low. Although several sunspots were present and some even popped up in the course of the week, only 3 were able to produce in total 5 C-flares on July 29, 30 and 31. When the last C-flare was fired off in the morning of July 31, the X-ray radiation became very quiet. One could hardly believe we are in a solar max.

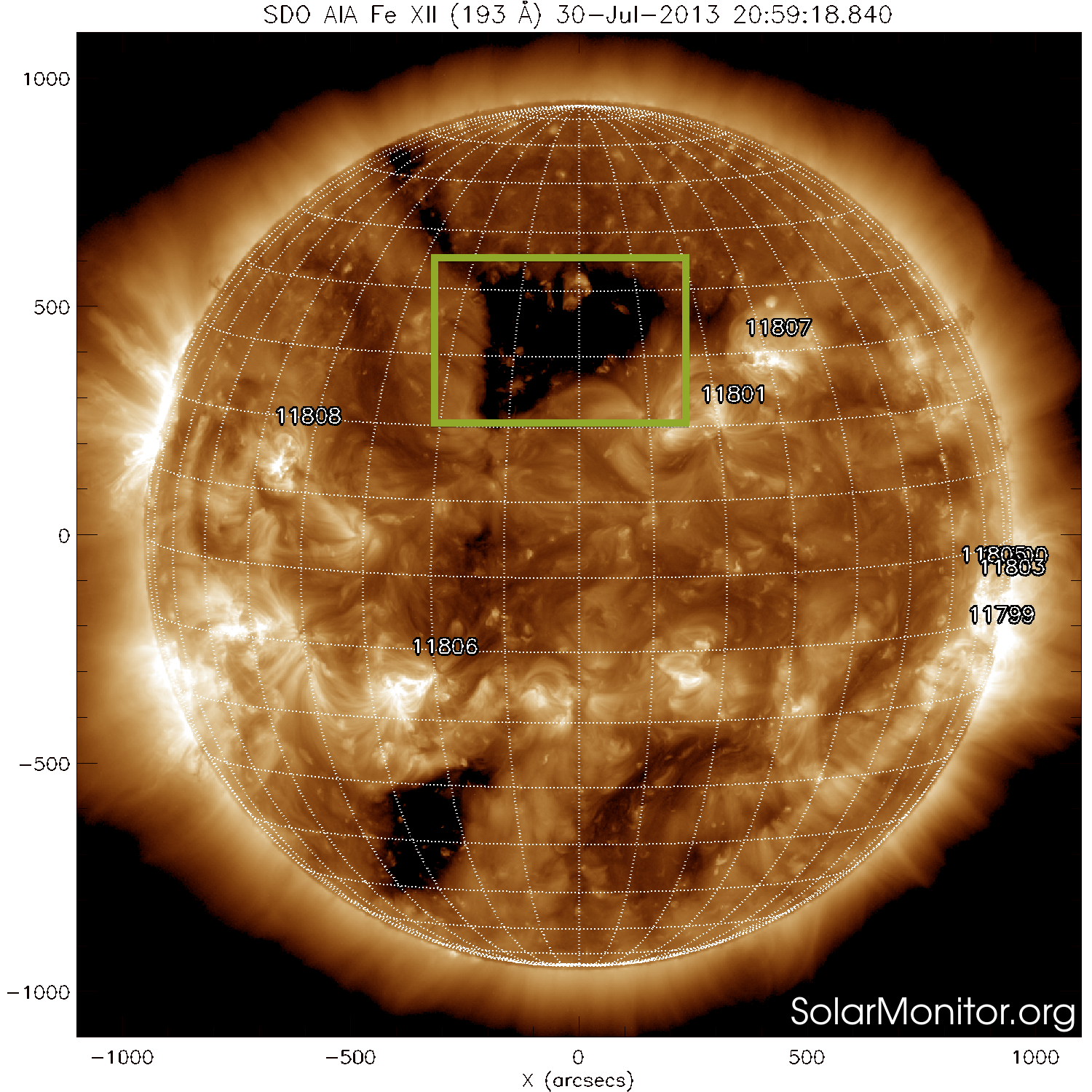

A coronal hole in the northern hemisphere that was situated between 20° and 45° reached the central meridian on July 29.
The solar wind was excellent in behaving smooth causing no trouble at all. The geomagnetic conditions were conform this behaviour: quiet. Until Aug 4.

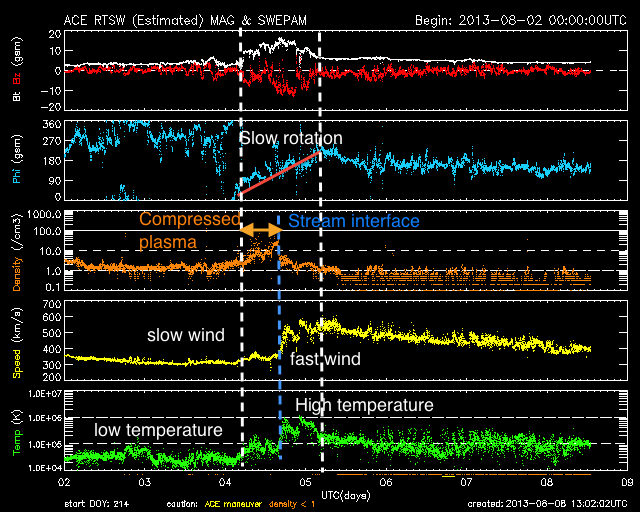

On Aug 4, an interaction region of a slow and fast solar wind arrived near Earth. This interaction region is indicated in the ACE graphs with white dotted lines in the figure below, denoting the beginning and the end of this particular solar wind event. The magnetic field became much stronger as there is a clear bump in the white curve in the top panel. The plasma is also more compressed in such a region where the slow and fast wind interact. The blue dotted line is the so-called stream interface. It is a rather abrupt transition where the solar wind speed increases suddenly and the plasma becomes hotter and less dense.
The magnetic field rotated from the sector where the magnetic field points towards the Sun (Phi = 0° or 360°) to a sector with the magnetic field pointing outwards (Phi = 180°). A rotation is however a-typical for this sort of solar wind structures. In normal circumstances - if you could ever speak about normal circumstances in space weather physics - the Phi-parameter fluctuates. In the interaction region, it seems that the magnetic field has difficulties with choosing a clear pointing direction.

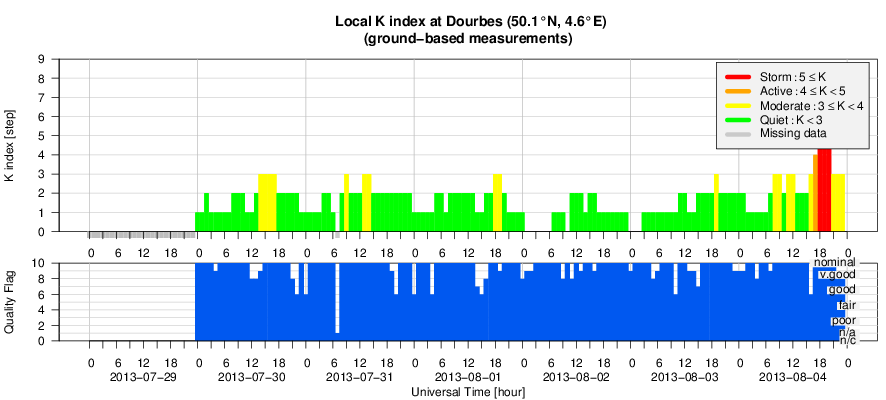

The solar wind speed increased to almost 600 km/s during the second part of Aug 4. When plasma travels at a speed of around 600 km/s, it takes a little less than 3 days to travel from the Sun to the Earth. Counting back 3 days from Aug 4, we arrive on Aug 1. At that moment, the coronal hole mentioned in the previous section had passed the central meridian. But, it is very likely that this coronal hole is responsible for this solar wind trouble.

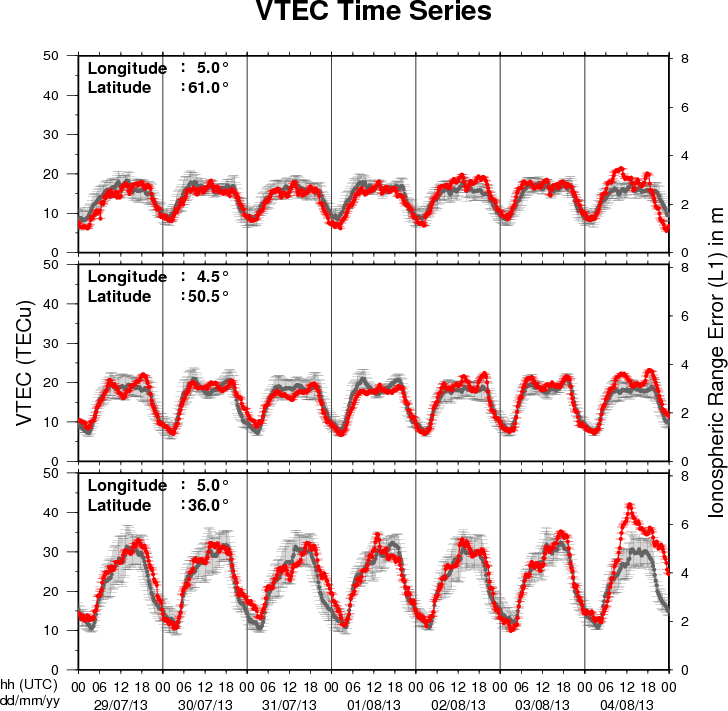

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
