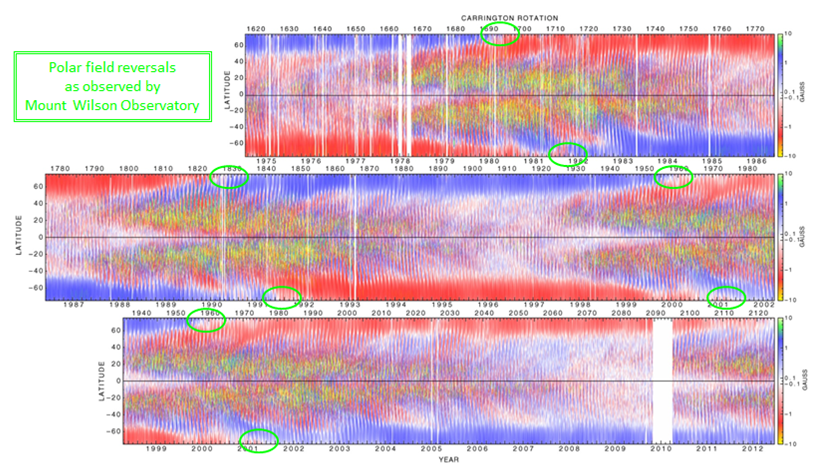

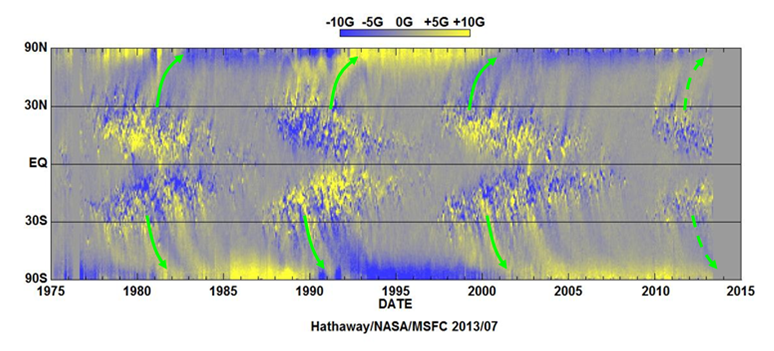

Each solar cycle, during the period of maximum activity, the magnetic field at the solar poles disappears and gets replaced by a magnetic field of opposite polarity. These reversals are a key feature of the solar dynamo: the physical process that generates the Sun's magnetic field necessary for the creation of sunspots and other magnetic phenomena. The plot underneath was produced by the Mount Wilson Observatory (MWO) and shows the evolution of the magnetic field over the solar surface since 1975 (red is negative polarity, blue positive). Polar reversals during previous cycles have been indicated with green ellipses.

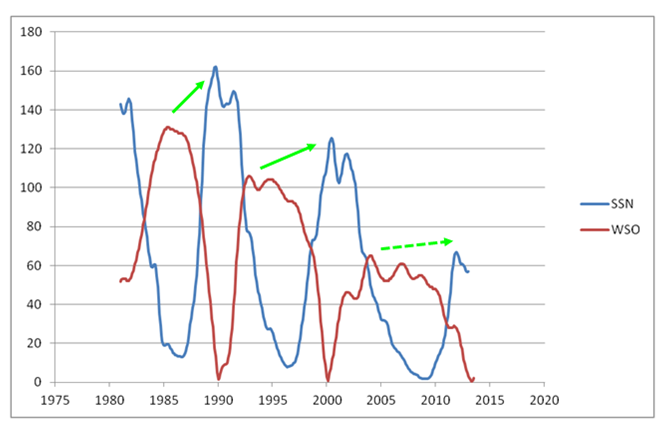

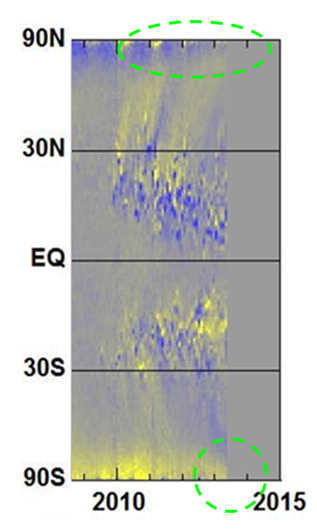

For the current solar cycle 24 (SC24), the reversal on the Sun's north pole has been going on now for about a year or two, with positive and negative polarities alternating each other for the above mentioned reasons. It seems that only right now, the reversal on the north pole has become permanent. This still has to be confirmed in the months ahead. The reversal at the south pole seems to have only just begun (mid-2013). Therefore, a complete reversal still seems quite a few months away.
The reversals also do not affect the geomagnetic field in a significant way. Indeed, though the Sun's polar field reversals affect the entire solar system, the Earth's magnetic field disturbances are mainly driven by coronal mass ejections from solar eruptions and the high speed streams from coronal holes. These are not influenced by the polar field switches. Hence, the magnetic reversals will not spark an increase in powerful solar storms or other events that could have a damaging effect on Earth and its technology.
Ten in a row: 2004 - 2005 - 2006 - 2007 - 2008 - 2009 - 2010 - 2011 - 2012 - 2013
ESWW10 is approaching, with loads of input by participants for the plenary sessions and the splinters: check http://stce.be/esww10
Enjoy the poster!

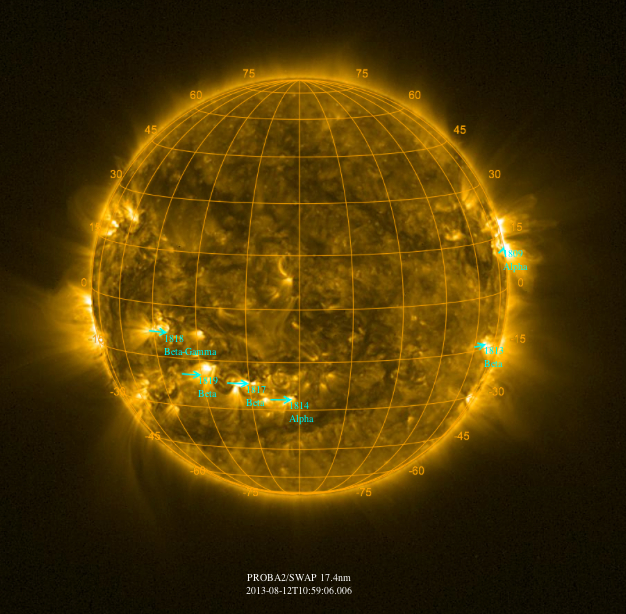

Solar activity was low for most of the week. NOAA AR 1817 was the main actor with 3 M flares. The image below is an EUV image taken by the SWAP telescope onboard of PROBA2. The NOAA active regions are indicated. Check http://sidc.be/soteria/soteria.php
The first one, a M1.5, occurred on August 12, 1041 UT (peak time), and was associated with a non-geoeffective CME. The image below is a CACTus-output. CACTus is a software that detects automatically transient events in coronographic images. It is a difference image, i.e. it shows the difference between 2 subsequent LASCO/C2 images. LASCO is a coronograph onboard of SOHO.
On August 17, AR 1817 produced a long duration event consisting of two consecutive M flares: a M3.3 at 1824 UT and a M1.4 at 1933 UT (peak time). This LDE was accompanied by a relatively fast CME (about 1000 km/s), a metric type II burst, and triggered a slight increase of the 10 MeV proton flux at Earth.
The number of active regions went from 5 on August 12 and 14, up to 9 on August 18.

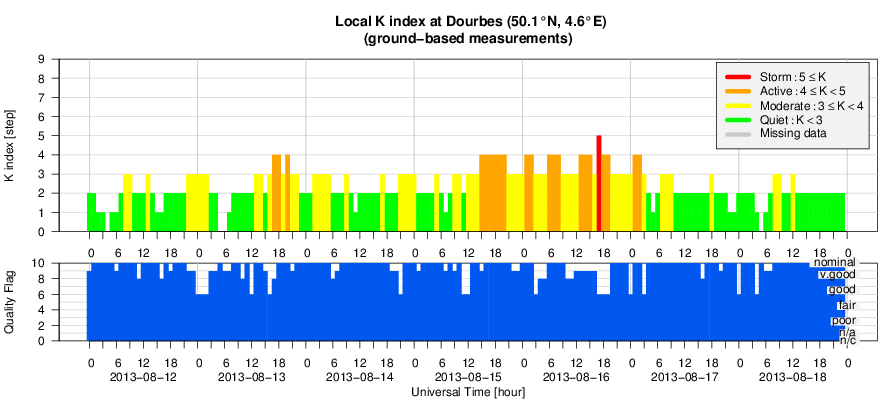

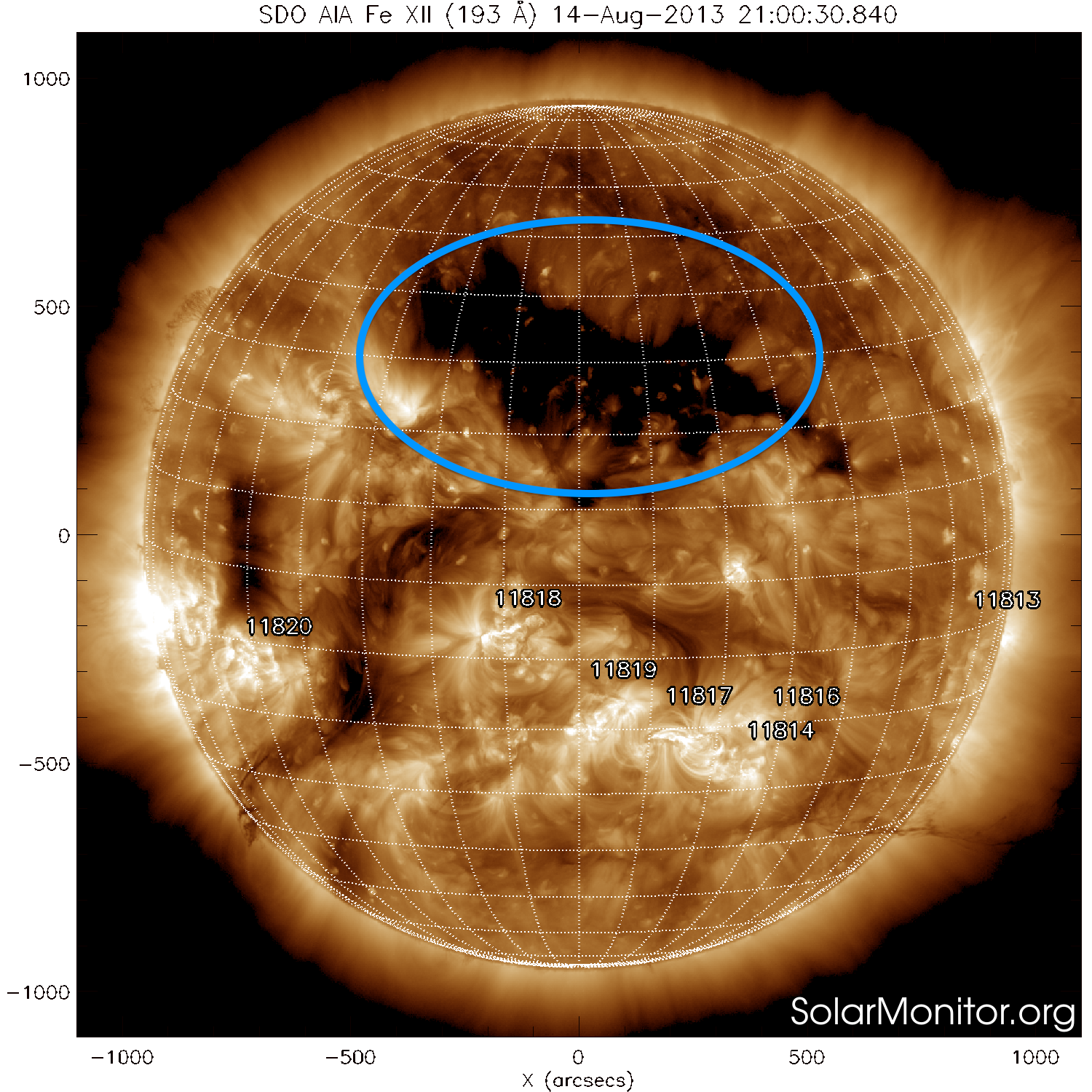

Quiet geomagnetic conditions were observed for most of the week. Unsettled to active conditions appeared at planetary levels from August 14 to August 16, with even a brief period of minor storm conditions on August 16 (0300 to 0600 UT). This disturbance was linked to a high speed solar wind stream linked to a coronal hole in geoeffective position (in the northern solar hemisphere). The hole is clearly visible in this SDO/AIA image.
ACE measured solar wind speeds up to 750 km/s on August 16, and Bz excursions down to -6 nT on the same day.
Solar (flaring) activity varied between low and moderate during the week. Three M-level flares were recorded. One of them (on Monday) originated from AR 11817, the other two (a dual eruption) from AR 11818.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed: http://proba2.oma.be/ssa. This page also lists the recorded flaring events.
A weekly overview movie can be found here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR177_Aug12toAug19_2013/2013_08_12_00_00_25_2013_08_18_23_20_43_SWAP_174-hq.mp4 (SWAP174; HelioViewer.org).
Details about some of this week’s events, can be found further below.

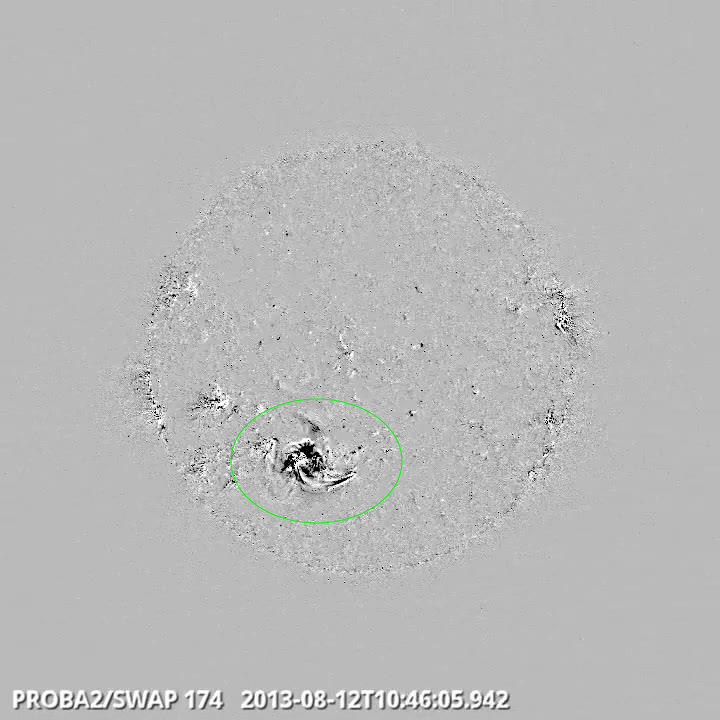

M1.5 flare eruption in South East Quadrant @ 10:46 - SWAP difference image
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR177_Aug12toAug19_2013/Events/20130812_M15_Eruption_SouthEastQuad_AR11817_1046_swap_diff.mp4 (SWAP difference movie)

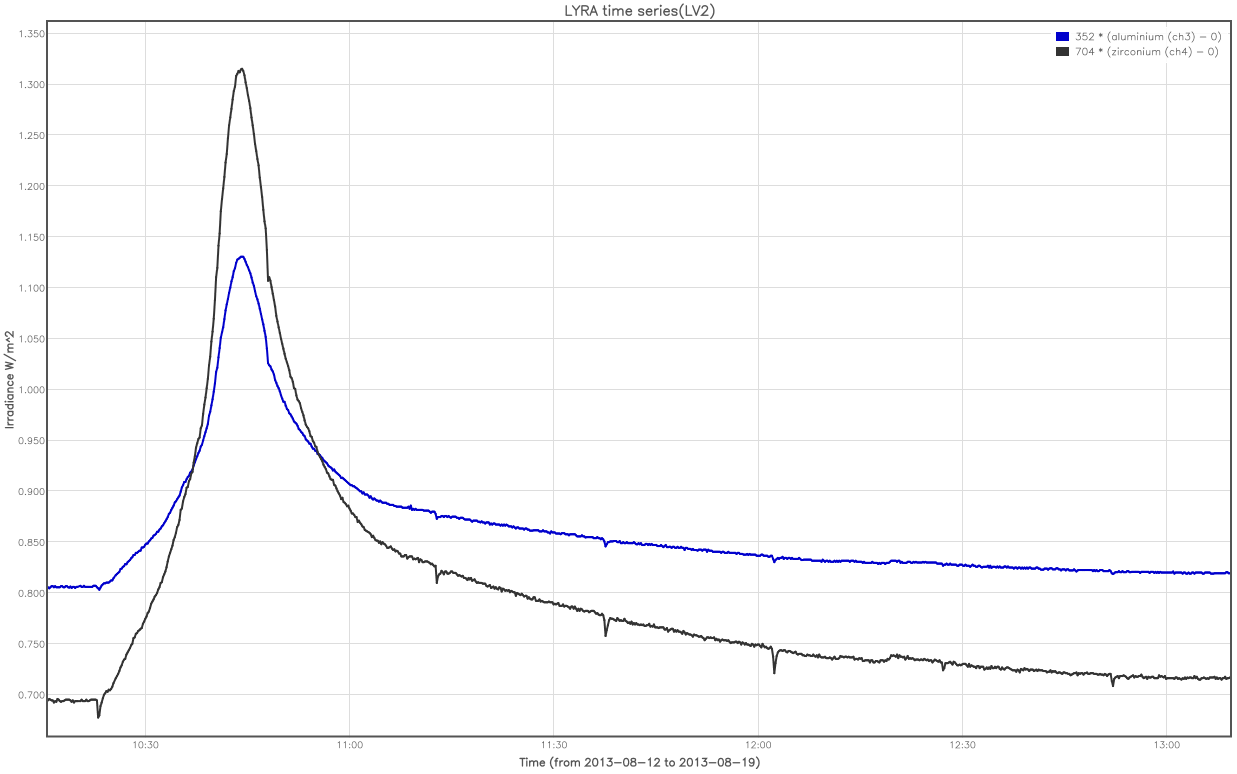

The LYRA curves of the M1.5 Eruption
(black: zirconium; blue: aluminium)
Prominence eruption in South West Quadrant @ 21:33 - SWAP difference image
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR177_Aug12toAug19_2013/Events/20130814_PromEruption_SouthWestQuad_2133_swap_diff.mp4 (SWAP difference movie)

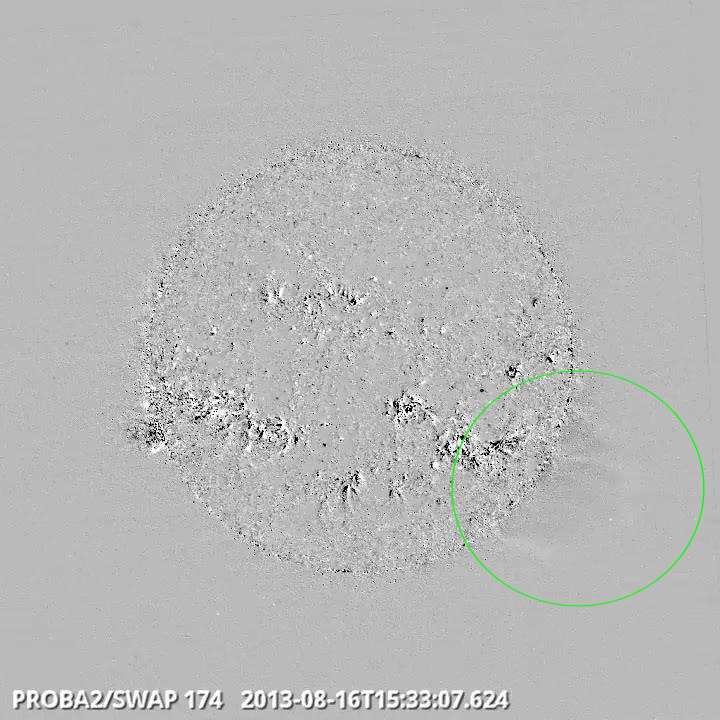

Prominence eruption in South West Quadrant @ 15:33 - SWAP difference image
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR177_Aug12toAug19_2013/Events/20130816_PromEruption_SouthWestLimb_1533_swap_diff.mp4 (SWAP difference movie)
Big Prominence Eruption in North East Quadrant @ 00:58 - SWAP difference image
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR177_Aug12toAug19_2013/Events/20130817_PromEruption_NorthEastQuad_0058_swap_diff.mp4 (SWAP difference movie)
Prominence Eruption on North East Limb @ 13:13 - SWAP difference image
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR177_Aug12toAug19_2013/Events/20130817_PromEruption_NorthEastLimb_1313_swap_diff.mp4 (SWAP difference movie)

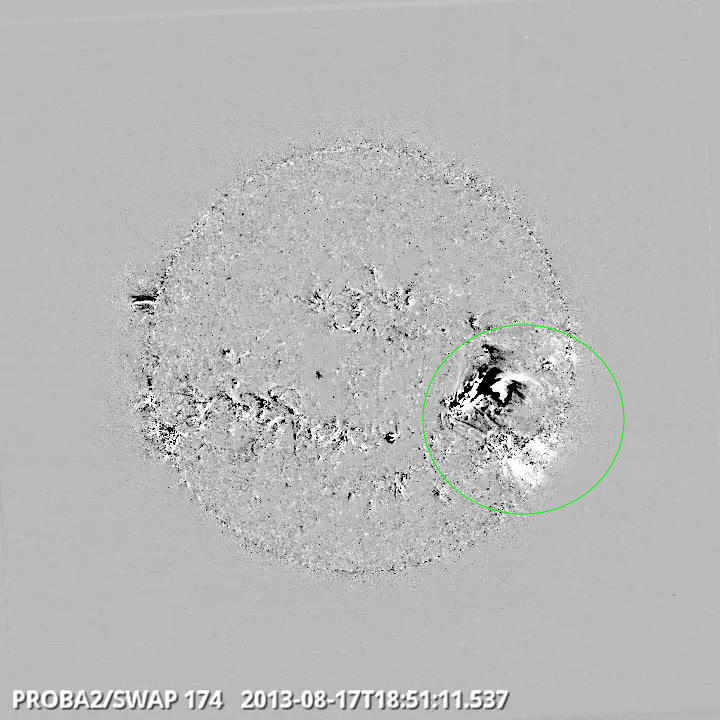

M3.3 + M1.4 Flare Eruptions in South West Quadrant @ 18:51 - SWAP difference image
Find a movie of the event here: http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR177_Aug12toAug19_2013/Events/20130817_M33_Eruption_SouthWestQuad_AR11818_1851_swap_diff.mp4 (SWAP difference movie)

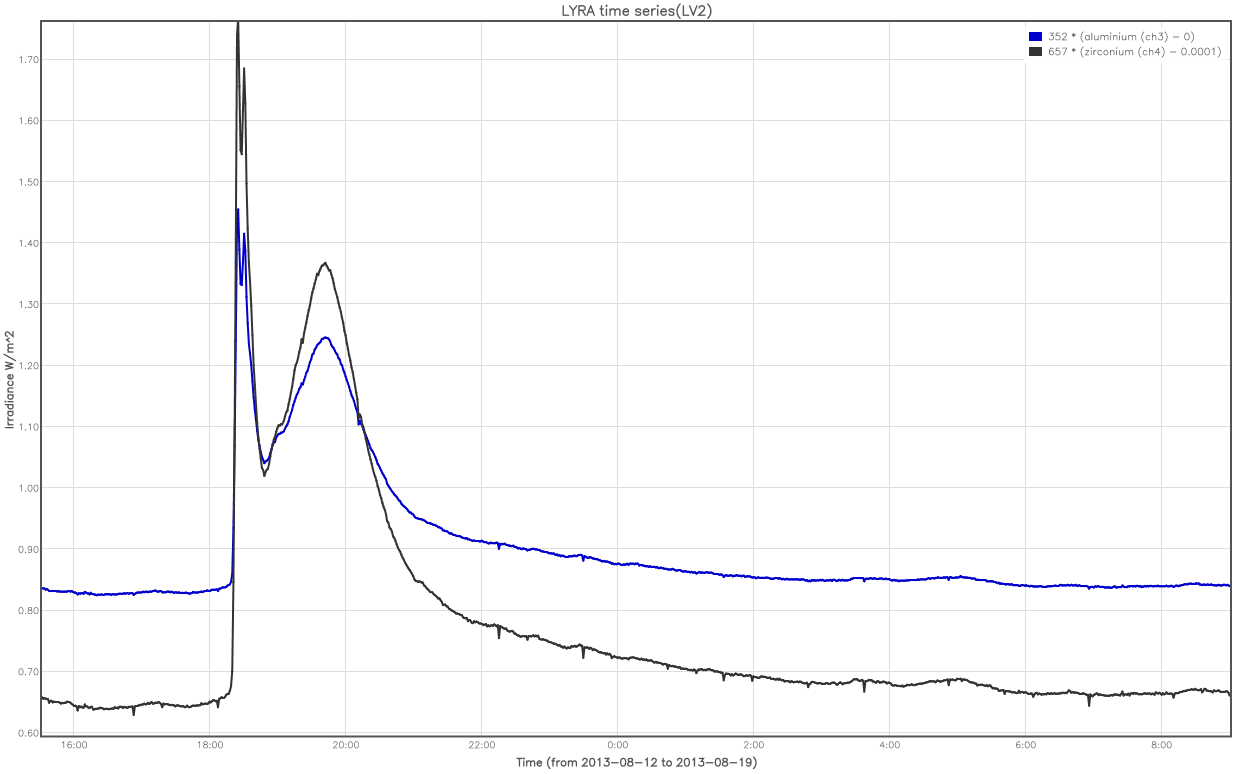

The LYRA curves of the M3.3 + M1.4 Eruption
(black: zirconium; blue: aluminium)
| DAY | BEGIN | MAX | END | LOC | XRAY | OP | 10CM | TYPE | Cat | NOAA |
| 12 | 1021 | 1041 | 1047 | S17E19 | M1.5 | SN | 1817 | |||
| 17 | 1816 | 1824 | 1835 | M3.3 | B | 110 | 1818 | |||
| 17 | 1849 | 1933 | 1954 | M1.4 | 150 | I/2 1I/2V/1 | 1818 |
| LOC: approximate heliographic location | TYPE: radio burst type |
| XRAY: X-ray flare class | Cat: Catania sunspot group number |
| OP: optical flare class | NOAA: NOAA active region number |
| 10CM: peak 10 cm radio flux |

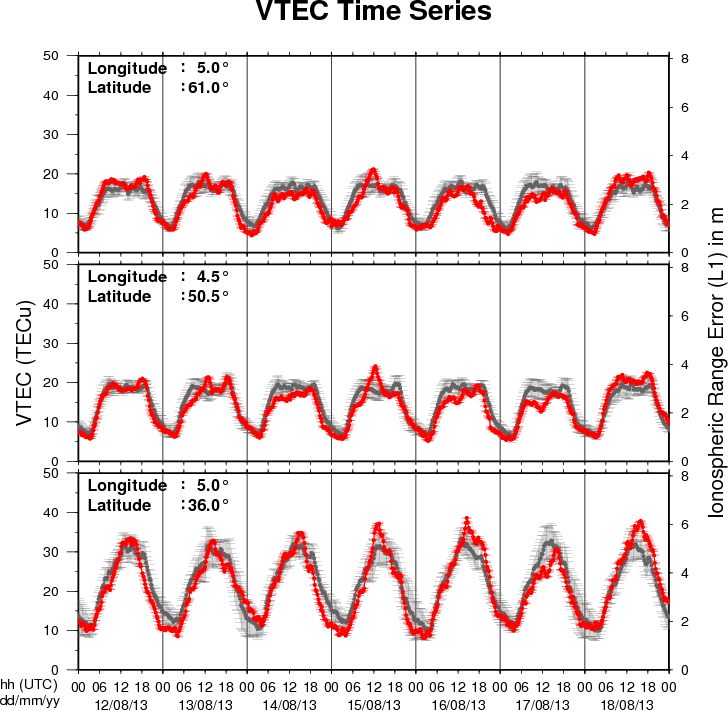

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
http://www.spaceweather.eu/en/repository/show?id=476
http://www.spaceweather.eu/en/repository/show?id=477
In this tutorial I show step by step how to calculate the single event upset rate for a planned mission with the SPENVIS SEE tool.
http://www.spaceweather.eu/en/repository/show?id=478
In this tutorial I give an overview of the spacecraft charging analysis tools, charging environment models and data sets that are available inside SPENVIS.
http://www.spaceweather.eu/en/repository/show?id=479
In this turial I give an overview of the radiation environment models and effect tools available in SPENVIS.
http://www.spaceweather.eu/en/repository/show?id=480
