As filaments and filament eruptions continue to determine the current solar activity, it may be an idea to get a bit more acquainted.
Solar filaments are clouds of ionized gas above the solar surface squeezed between magnetic regions of opposite polarity. Being cooler and denser than the plasma underneath and their surroundings, these magnetic borderlines appear as dark lines when seen on the solar disk using special filters. One such a filter is the Hydrogen-alpha (H-alpha) line in the red part of the solar spectrum. It shows the cool inner atmosphere of the Sun. Filaments can appear in e.g. sunspot regions, where they are called active region filaments. They can also appear completely isolated on the solar disk, and then they are called quiescent filaments. These can become very long and can last for one or more solar rotation.
Since systematic H-alpha observations started over a century ago, the filament structure and its constituting parts have all been given names. As such, a filament consists of a spine, barbs, legs and veins. Here, "spine" is the name for the overall, long, very thin, darkish filament feature. It can be several tens of thousands kilometers high and hundreds of thousands kilometers long, yet only a few thousands of kilometers wide. Therefore in modeling, it's often called a "slab". Due to perspective effects, the filaments seem actually quite a bit wider than they actually are.

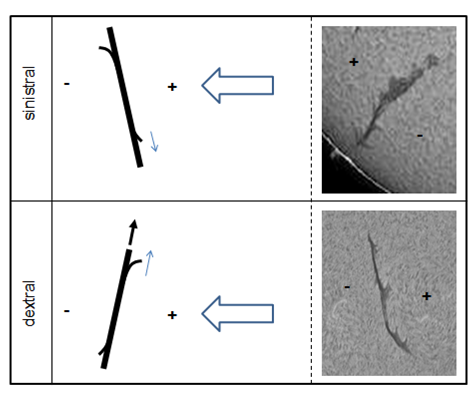

On many occasions, one can see filamentary pieces sticking out of the spine. These are the "barbs", very similar in outlook to the barbs on a harpoon. Barbs are a topic of scientific research. Indeed, the direction of the barbs as seen from the positive magnetic field that borders the filament, gives an indication of the magnetic helicity, which in turns may help in determining the magnetic orientation of the coronal mass ejection if such a filament would erupt. A large majority of the filaments on the northern solar hemisphere is directed to the right ("dextral"), whereas on the southern hemisphere, most of them are directed to the left ("sinistral"). Amazingly, this "rule" remains valid over all the solar cycles, and thus does not depend on e.g. the polar magnetic field reversal.
The outer ends of the filament are called "legs", and they can terminate in a single or in multiple points. Often, magnetic instabilities near one of the legs may cause (part of) the filament to erupt.
High resolution images of filaments have shown that the spine, barbs and legs of a filament actually all consist of many filamentary threads (also called "veins"). These thin threads are considered as the fundamental structures of solar filaments. The H-alpha picture underneath shows these threads making up a filament. It was taken by Prof. Oddbjorn Engvold (University of Oslo) with the Swedish solar telescope (SST) on La Palma. For a sense of the scale of these features, an image of the Earth has been added.
Credits - Imagery was taken from the GONG H-alpha Network (http://halpha.nso.edu/) and the Swedish 1m Solar Telescope (http://www.solarphysics.kva.se/)
Solar (flaring) activity fluctuated between low and very low during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed: http://proba2.oma.be/ssa.
This page also lists the recorded flaring events.
A weekly overview movie can be found here (SWAP184), and includes data from three planned
offpoints.
http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR184_Sep30toOct06/weekly_movie_2013_9_30.mp4
Details about some of this week's events, can be found further below.

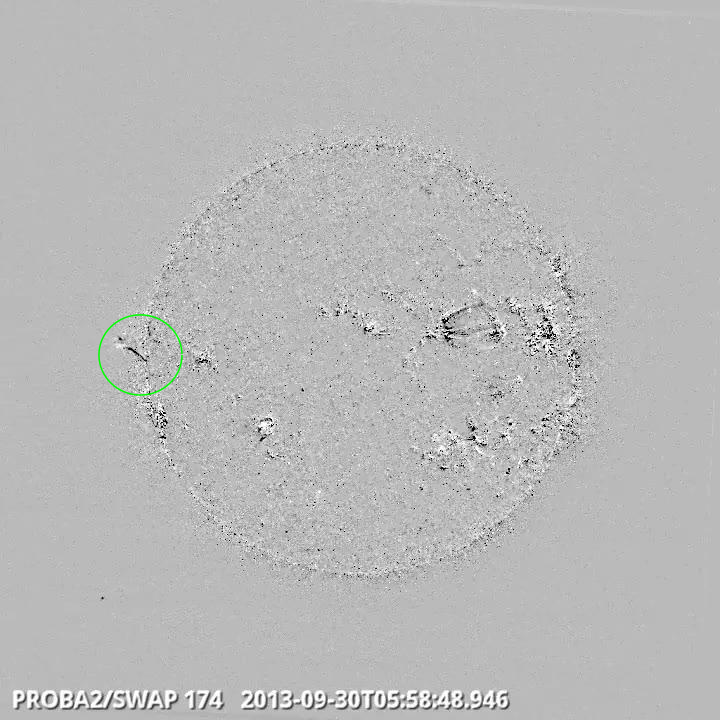

Eruption on the east limb @ 05:58 - SWAP difference image
Find a movie of the events here (SWAP difference movie)
http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR184_Sep30toOct06/Events/20130930_Eruption_EastLimb_0558_swap_diff.mp4

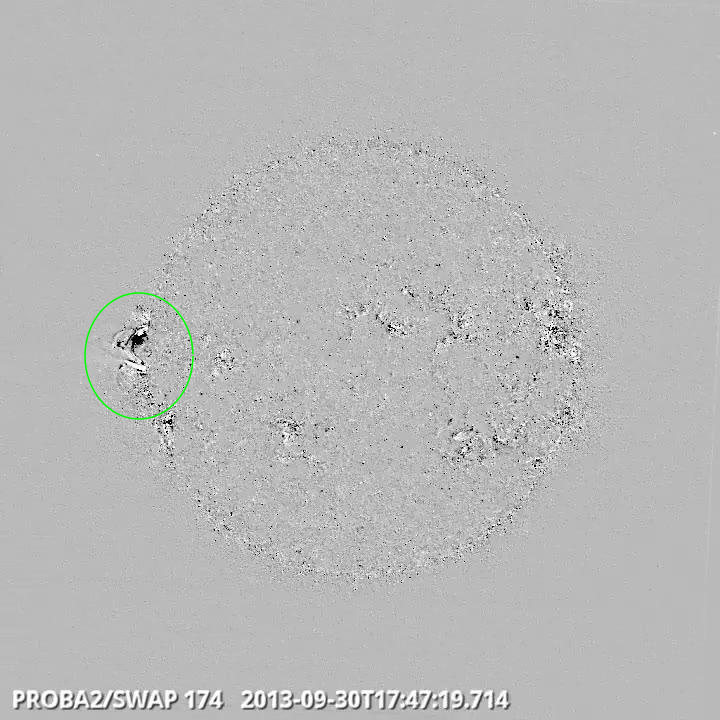

Eruption on the east limb @ 17:47 - SWAP difference image
Find a movie of the events here (SWAP difference movie)
http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR184_Sep30toOct06/Events/20130930_Eruption_EastLimb_1747_swap_diff.mp4

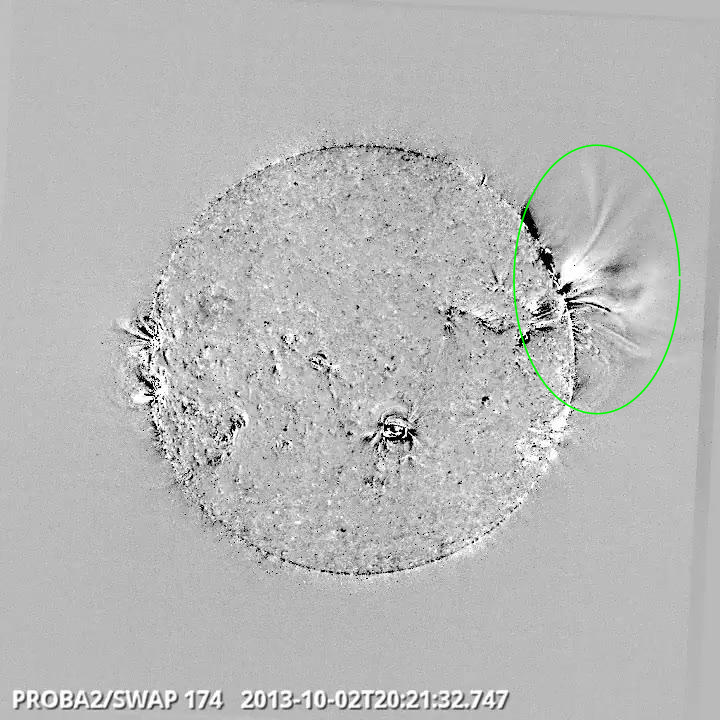

Eruption on the northwest limb @ 20:21 - SWAP difference image
Find a movie of the event here (SWAP difference movie)
http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR184_Sep30toOct06/Events/20131002_Eruption_NortWestLimb_2021_swap_diff.mp4

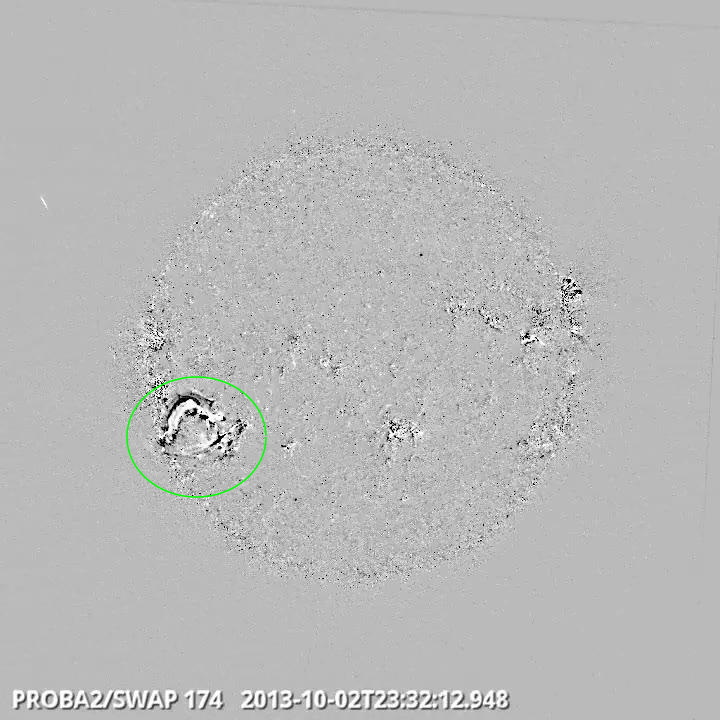

Eruption in the southeast quad @ 23:32 - SWAP difference image
Find a movie of the event here (SWAP difference movie)
http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR184_Sep30toOct06/Events/20131002_Eruption_SouthEastQuad_2332_swap_diff.mp4

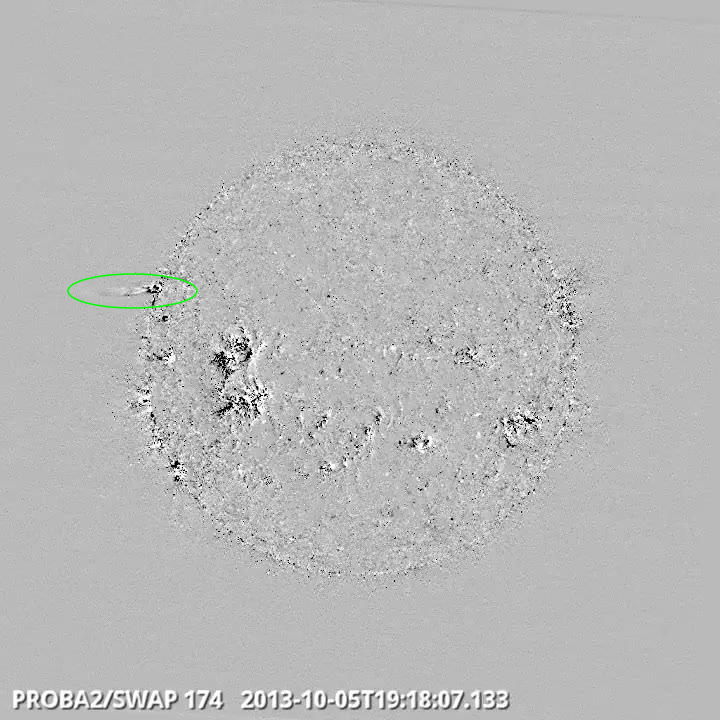

Eruption on the northeast limb @ 19:18 - SWAP difference image
Find a movie of the event here (SWAP difference movie)
http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR184_Sep30toOct06/Events/20131005_Eruption_EastLimb_1918_swap_diff.mp4
Eruption with a two ribbon flare on the south west quad @ 13:56 - SWAP difference image
Find a movie of the event here (SWAP difference movie)
http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR184_Sep30toOct06/Events/20131006_2RibbenFlare_SouthWest_1356_swap_diff.mp4
Flaring activity was limited this week to a handfull lower C-class flares. The highest X-ray flux was recorded with a C2.5 flare originating from NOAA AR 1856 on Oct 4.
The most spectacular flares however were two long duration C-flares that triggered CMES. The long duration C1.2 flare of Sept 29 (peak 23:39 UT) happened just before the present period but was associated with a large filament eruption resulting in a halo CME. The plasma eruption eventually produced a geomagnetic storm on Oct 2 (see the section Geomagnetic Activity). The second long duration flare was a C1.5 flare late on Oct 2 showing a beautiful plasma eruption at the solar NW limb. In the series of pictures from SDO/AIA 171, a plasma eruption and post flare loops are visible on the solar limb.
In addition, the CACTUS software detected a partial halo CMEs observed by LASCO, leaving the Sun towards the SE quadrant on Oct 4, 19:18 UT and an homologous event on Oct 5 07:09 UT. These events were determined to be back-sided.

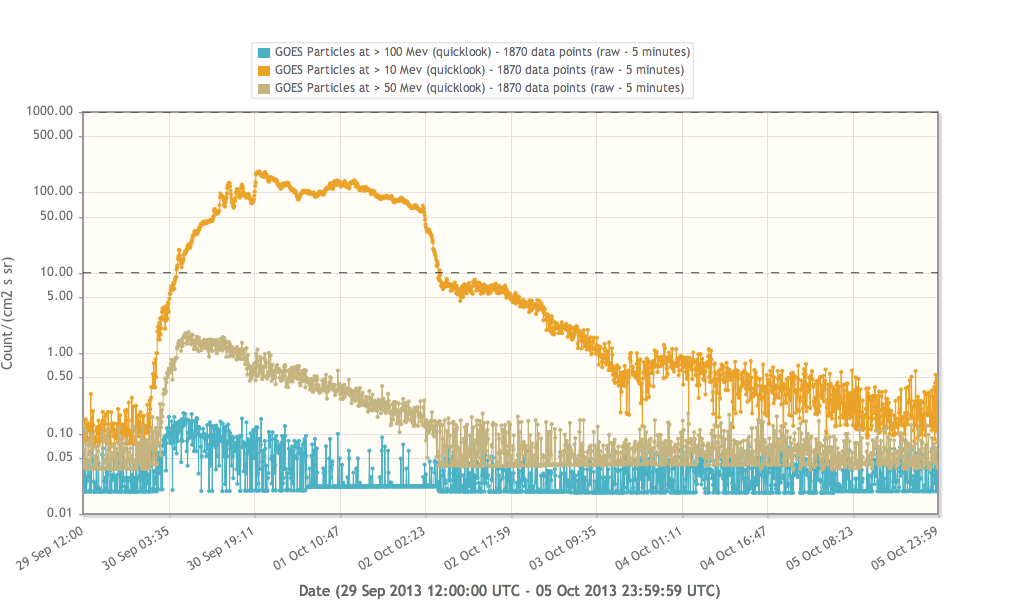

In association with the Sept 29 C1.2 flare, the GOES proton flux level (>10 MeV protons) was above the event threshold (10 pfu) from Sept 30 05:00 till Oct 2 05:00, reaching a peak value of 182 pfu at Sept 30 20:05.

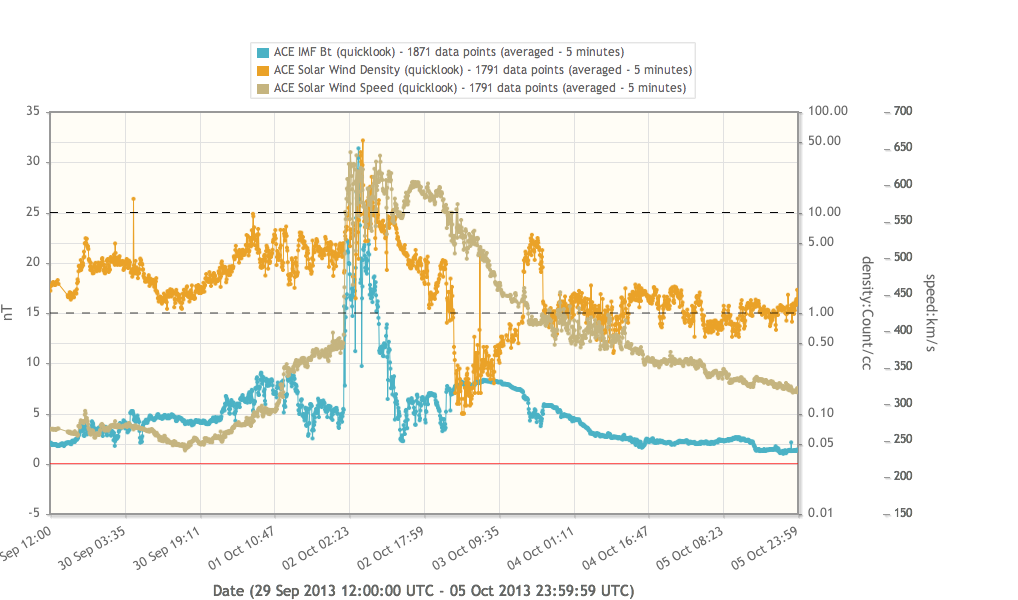

Geomagnetic activity was at the K=2 level or lower, except on Oct 2 and the early hours of Oct 3, when a geomagnetic storm took place. Local K values at Chambon-La-Foret and Dourbes peaked respectivly to K=6 and K=5 early morning Oct 2, while NOAA's estimated planetary Kp index reached Kp=7 at the same time. The driver for this storm was a shock in the solar wind on Oct 2 01:20 UT when the solar wind speed increased suddenly from about 380 km/s up to >600 km/s. An abrupt chance was also seen in the total interplanetary magnetic field (IMF) and in the density, although the density jump was less pronounced. ACE measurements of the IMF, density and speed are shown below.
This shock was the arrival of the filament that was ejected from the Sun on midnight Sept 29/Sept 30, just before the present period.
The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
