It's not so easy to distinguish various transients in in situ data of the solar wind by just looking at the magnetic field and solar wind parameters such as speed, temperature and density. Most can pick out the signature from a coronal mass ejection, featuring increase in magnetic field and decrease in temperature, and sudden increase in density, speed and magnetic field strength if the CME is driving a shock. Things get more complicated when it comes to the effects of Sector Boundary Crossings (SBC) or from the interaction region related to a fast solar wind stream coming from a coronal hole (increase in speed and temperature).
A coronal hole rotates together with the Sun: the associated solar wind structure is therefore called a Co-rotating Interaction Region (CIR). When the coronal hole survives several solar rotations, it is recurring and it's important for medium-term space weather predictions. But let's start by having a look on what SBC and (C)IR actually are.

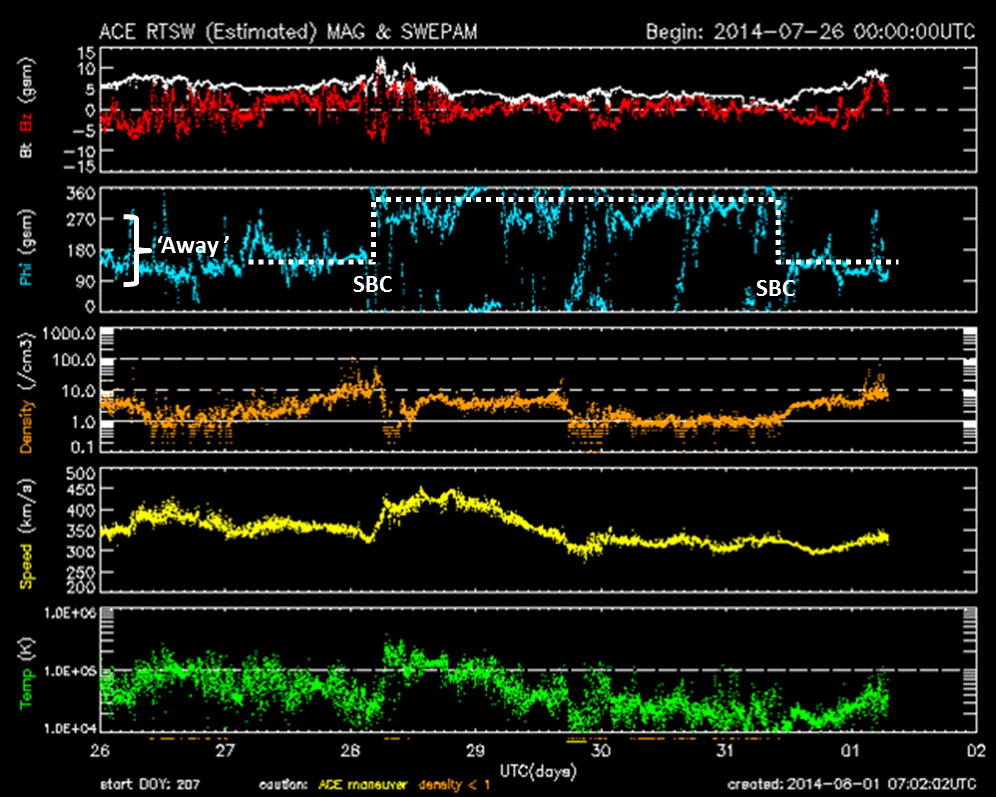

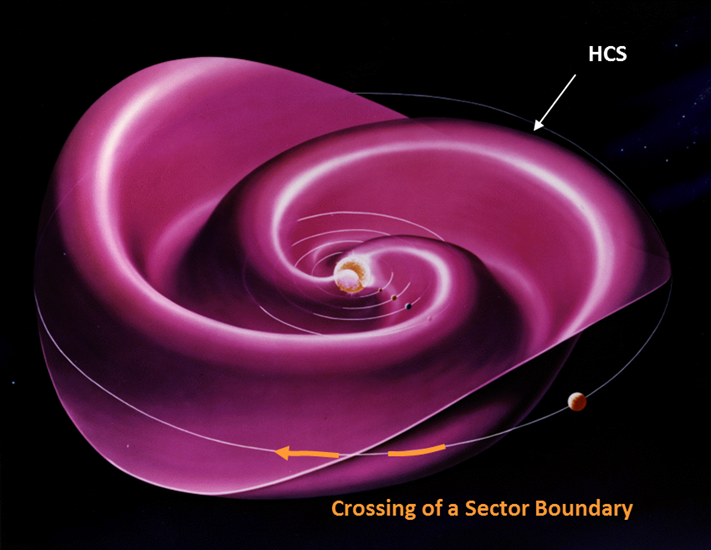

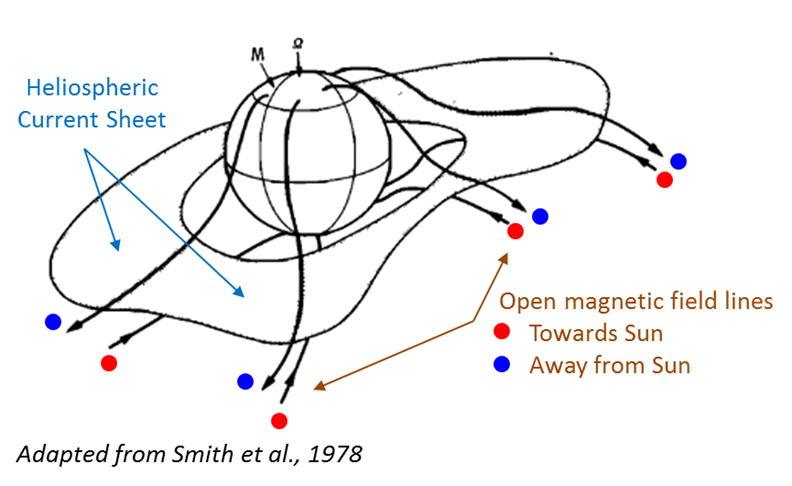

The Sun is a giant magnet with magnetic field lines extending away into space (positive, "away") and other field lines returning from space to the Sun (negative, "towards"), with each solar hemisphere having a different polarity, in general. Along the solar magnetic equator, these opposite field lines run parallel to each other creating a current sheet, which is called the "Heliopsheric Current Sheet" (HCS).

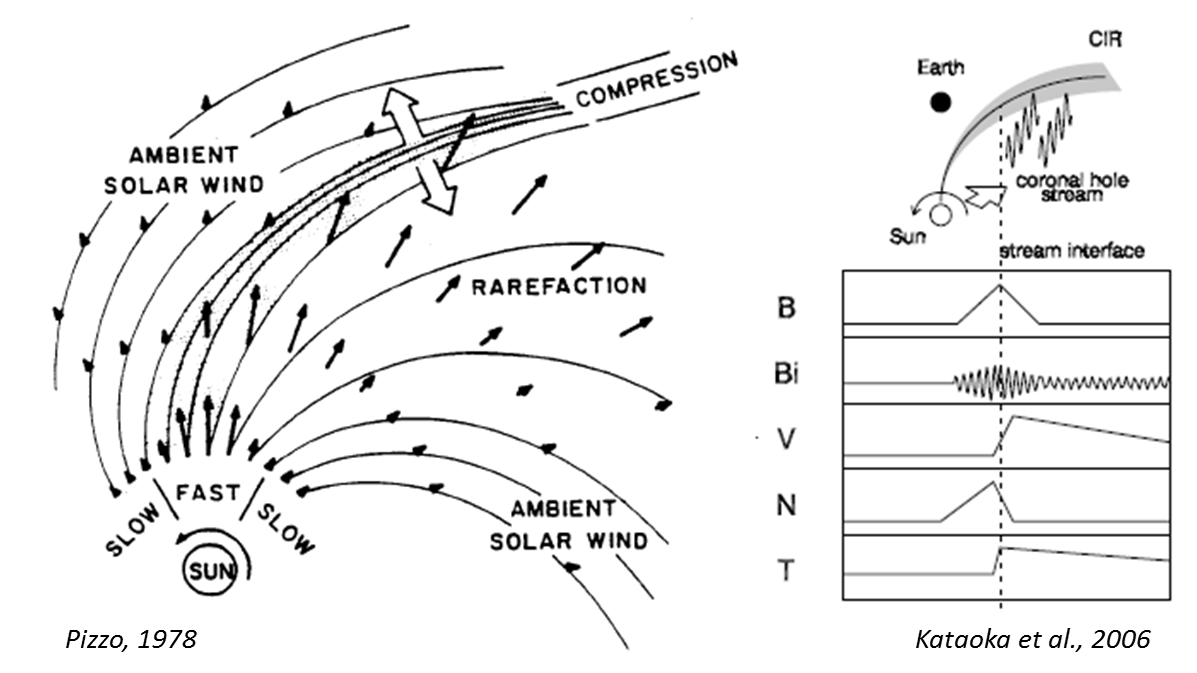

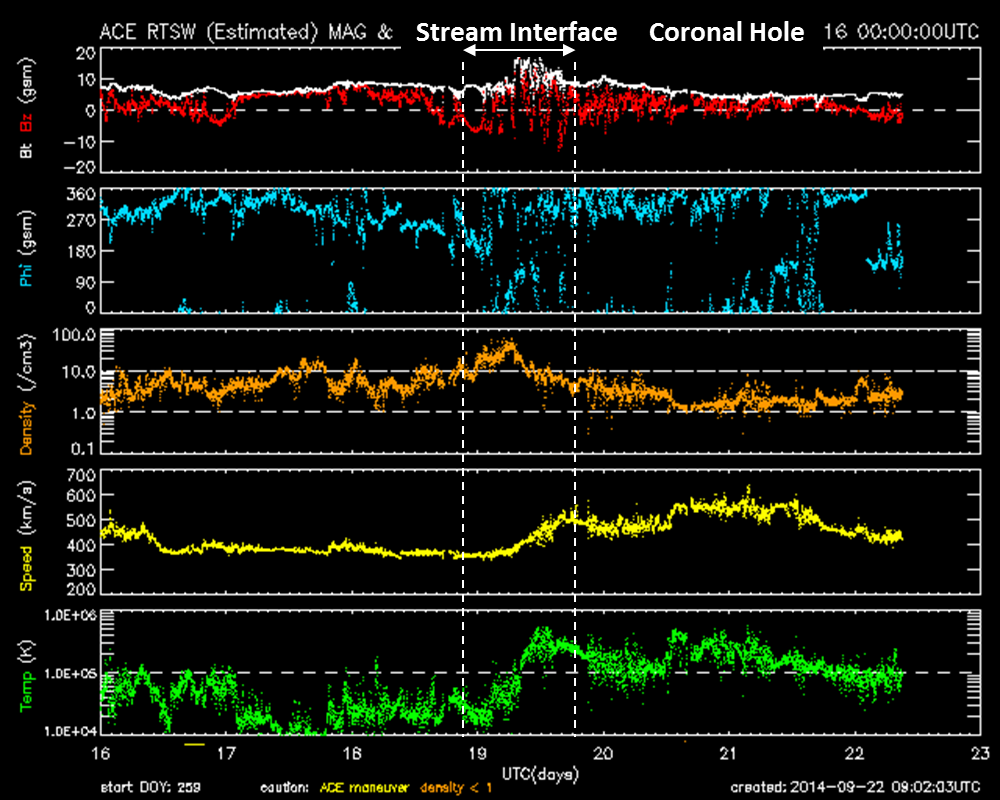

Solar particles can leave the Sun along the open magnetic field lines and at different speeds. Hence, the high speed stream from e.g. a coronal hole may interact with the slower moving normal solar wind ahead. Where the two meet, an interface results in a compressed space of increased density and magnetic field strength. This interface separates the slow from the fast solar wind. At some point in space, the interface becomes a shock, sometimes already at the Sun-Earth distance. Then the speed continues its gradual increase towards the main speed of the coronal hole. As the stream interaction region passes, there's no obvious change in the direction of the magnetic field, which is usually oscillating during that period. As the stream interaction region has passed, the magnetic field assumes the direction of the field embedded in the high speed stream of the coronal hole, which may or may not be the same as that of the slow solar wind.
Solar flare activity fluctuated between low and moderate during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed: http://proba2.oma.be/ssa
This page also lists the recorded flaring events.
A weekly overview movie can be found here (SWAP week 234).
http://proba2.oma.be/swap/data/mpg/movies/WeeklyReportMovies/WR234_Sep15_Sep21/weekly_movie_2014_09_15.mp4

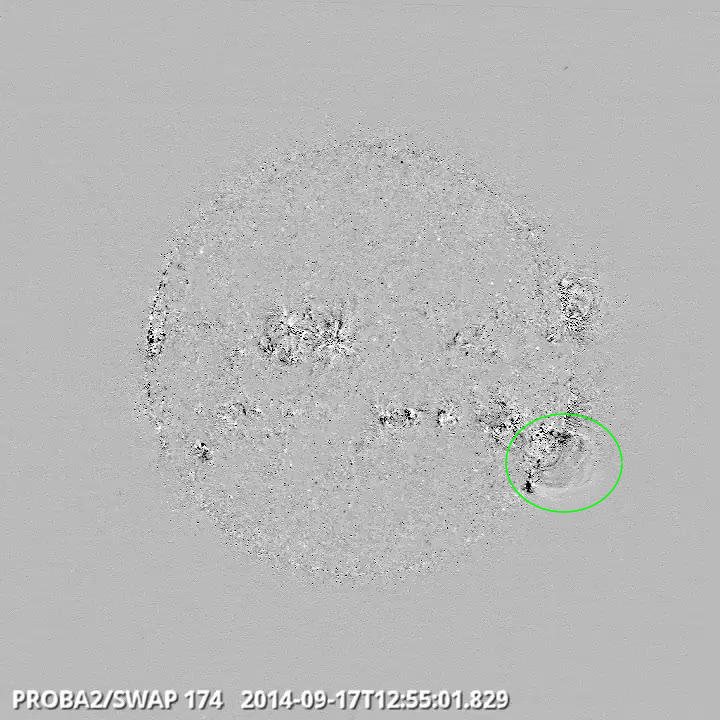

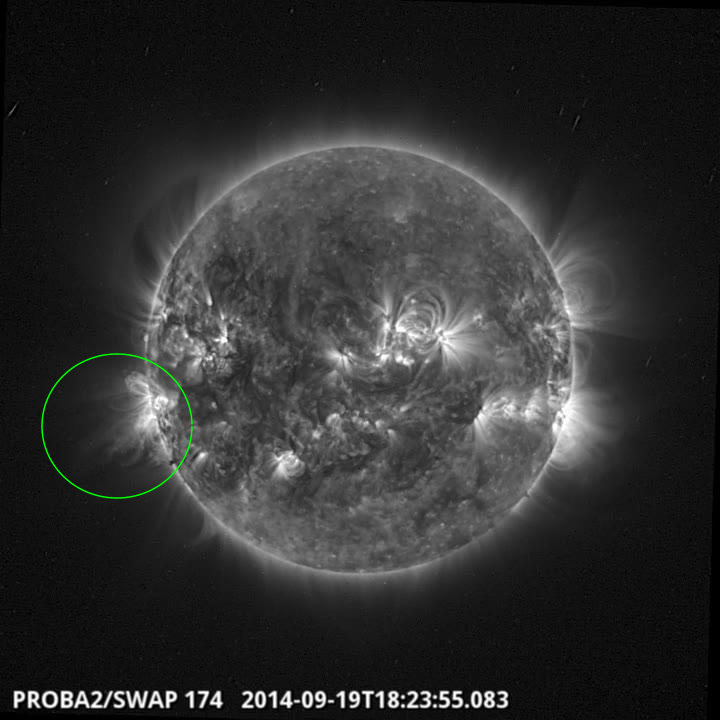

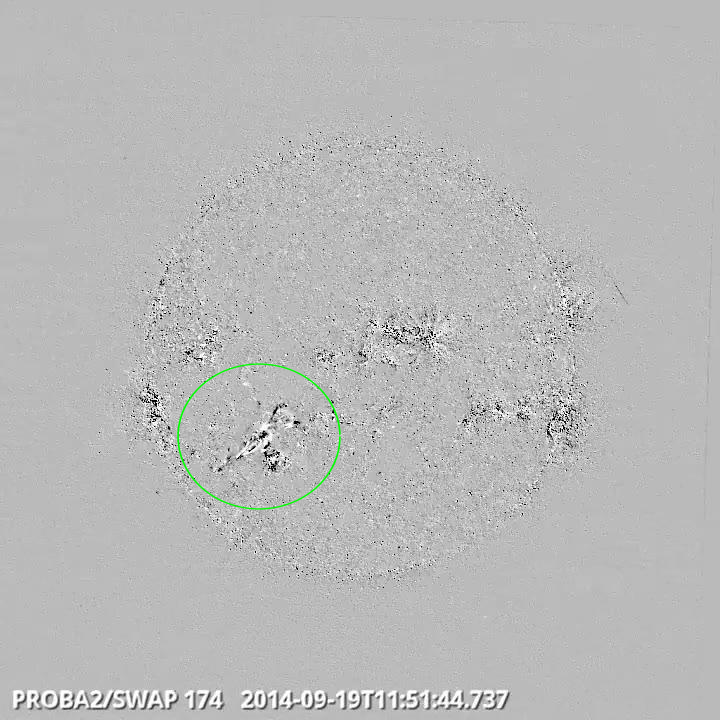

Details about some of this week's events, can be found further below.

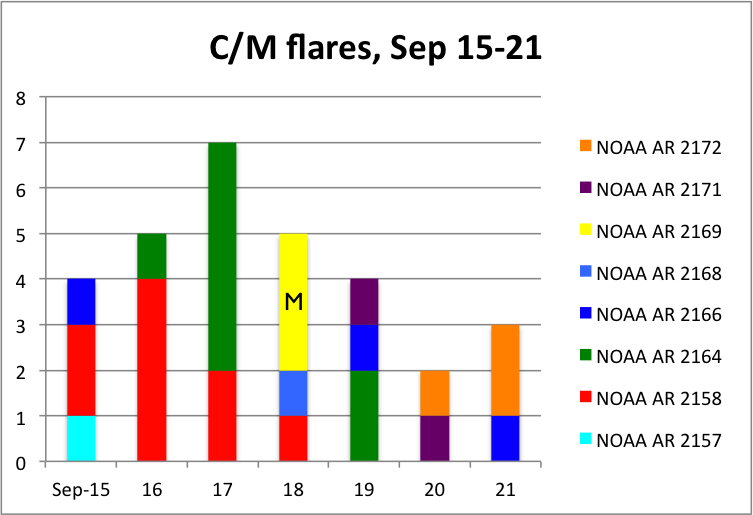

Eight active regions contributed to the flaring activity which remained at or below the C-class, except from an M1.2 flare from NOAA AR 2169 with peak at 08:41 UT on September 18. The distribution of the flares over the week and the active regions are put in the chart below.

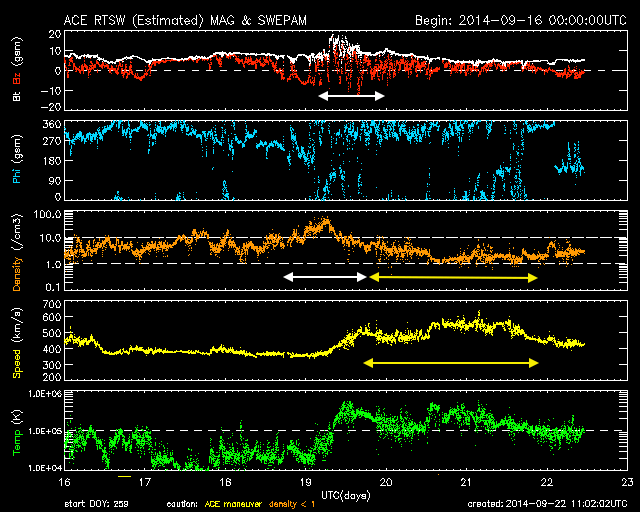

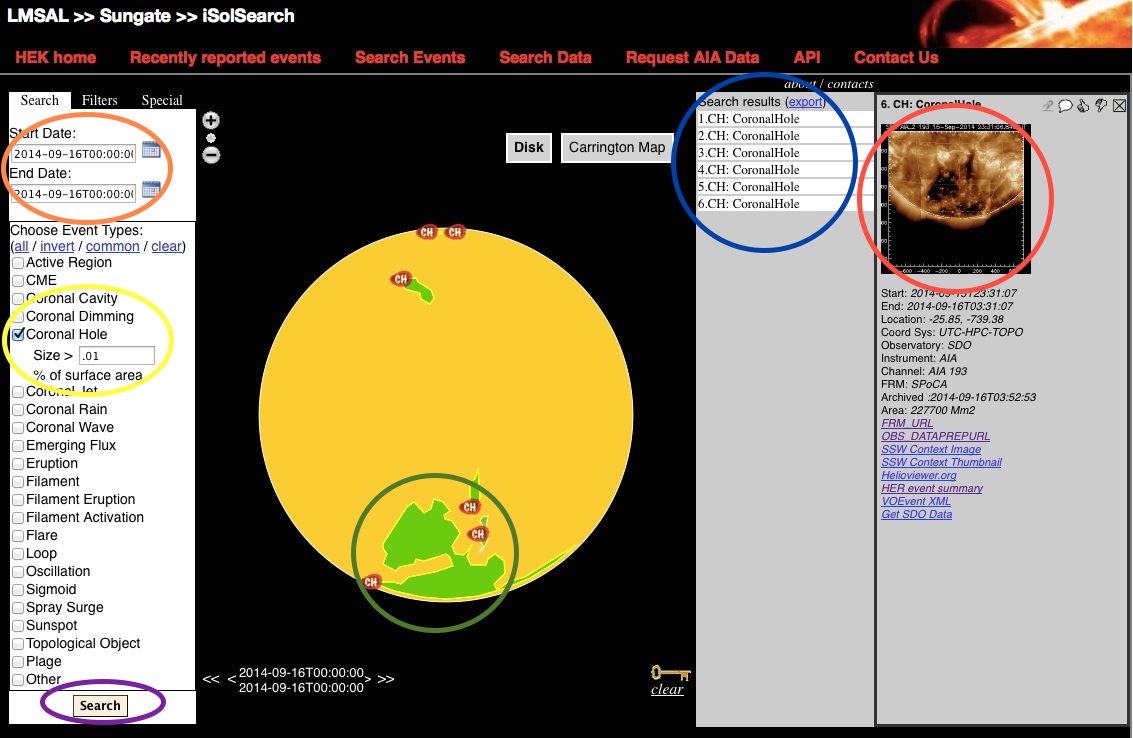

Usually, it is a coronal hole (CH) that is behind such a solar wind behaviour. We call it co-rotating because the CH rotates together with the Sun and ACE which is situated at the L1 point (1AU, just in front of Earth) would measure the same behaviour of the solar wind linked with the CH if it was located at another point on the orbit of Earth.
| DAY | BEGIN | MAX | END | LOC | XRAY | OP | 10CM | TYPE | Cat | NOAA |
| 18 | 0837 | 0841 | 0853 | N8E70 | M1.2 | SN | 72 | III/2II/2 | 2169 |
| LOC: approximate heliographic location | TYPE: radio burst type |
| XRAY: X-ray flare class | Cat: Catania sunspot group number |
| OP: optical flare class | NOAA: NOAA active region number |
| 10CM: peak 10 cm radio flux |

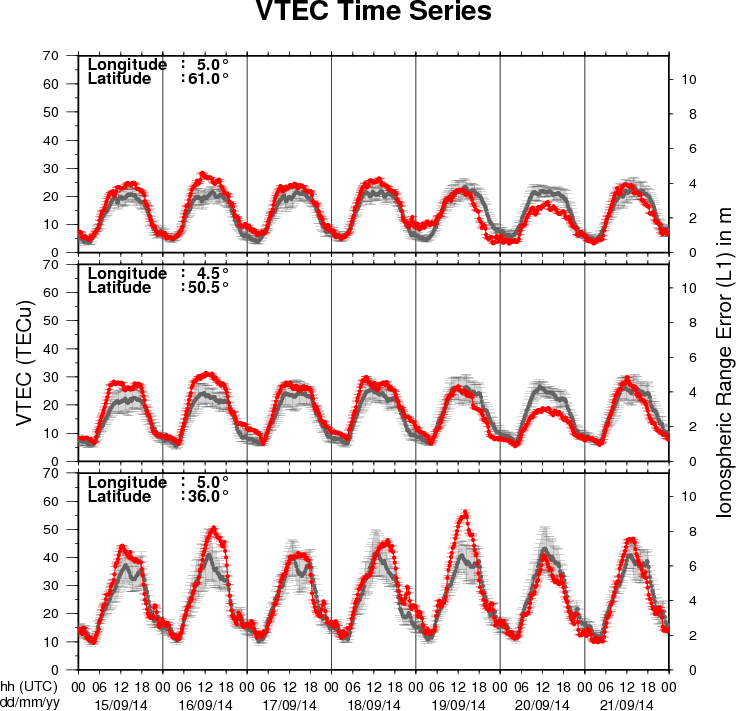

The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
