Around noon on 27 March, a giant wall of solar plasma (charged particles) propelled itself into space. A movie of this event can be seen at http://youtu.be/_CLHqe9-gd8
Prominences are regions of dense and relatively cool material that are squeezed between fields of opposite magnetic polarity. They are seen at the solar limb, with typical values for height and length of resp. 30.000 km and 100.000 km. On the solar disk, they are seen as thin dark lines called filaments.
Last week's prominence clearly diverged from these typical values. In fact, just prior to its eruption, its height was at a steady 100.000 km, and with its length of at least 400.000 km it was even longer than the average earth-moon distance!
As this "wall of plasma" got ejected into space, the associated coronal mass ejection (CME) displayed its typical lightbulb shape: bright rim, dark cavity, and bright core filament. The CME was rather slow, with a plane-of-the-sky speed of only about 300 km/s. Though most of the prominence was ejected, some material can be seen falling back onto the solar surface, creating local brightenings.
The movie first shows a wide angle view of the event combining extreme ultraviolet (EUV) images from PROBA2 (1 million degrees) and SDO/AIA 304 (80.000 degrees). The clip covers nearly 3 days (25-27 March) and gives an idea of the extent of the wall as it appears from behind the northeast solar limb. The next clip covers 12 hours (06:00-18:00UT) and provides a zoom on the prominence and its evolution by combining SDO/AIA 304 (red) with AIA 193 (green; 1.3 million degrees) imagery. This zoom clearly shows the dynamics of the mass concentrations within the prominence. The final clip adds coronagraphic imagery from SOHO/LASCO C2.
Credits - Images for this movie were taken from SDO (http://sdo.gsfc.nasa.gov/), PROBA2 (http://proba2.oma.be/ssa), SOHO (http://sohowww.nascom.nasa.gov/home.html), and (J)Helioviewer (http://helioviewer.org/).
The twelfth edition of the European Space Weather Week is waiting for your input. You can choose between 3 flavours: contribution to a session, a working meeting proposal or a business meeting.
Pick yours on http://www.stce.be/esww12/
Happy submission !
Solar flare activity remained low during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed:
http://proba2.oma.be/ssa
This page also lists the recorded flaring events.
A weekly overview movie can be found here (SWAP week 261).
http://proba2.oma.be/swap/data/mpg/movies/weekly_movies/weekly_movie_2015_03_23.mp4
Details about some of this week’s events, can be found further below.
Failed eruption on the east limb @ 16:19 SWAP image
Find a movie of the event here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150327_swap_movie.mp4
Only C-class flares were reported, 40 in total with a majority of low C-class flares. The strongest flare of the week was the C8.7 flare peaking at 04:46 UT, on March 25. This long duration flare originated from the Catania sunspot group 13 (NOAA AR 2305) and was accompanied by coronal dimming and a post-eruption arcade observed by SDO/AIA. There was although no clear CME visible in the SOHO/LASCO data. The majority of the flares originated from the Catania sunspot group 13 (NOAA AR 2305), which had a beta-gamma configuration of its photospheric magnetic field, except on May 25 and 26, when it was classified as beta-gamma-delta active region.
Two wide CMEs were observed this week. For both, the source region was on the far-side of the Sun, and were therefore not expected to arrive to the Earth. No wide, Earth-directed CMEs were observed this week.
The full halo CME, first seen in the SOHO LASCO C2 field of view at 08:24 UT on March 24 and with a projected plane-of-the-sky speed of about 1900 km/s, was however with a gradual increase of the proton >10 MeV fluxes. The flux did not cross the event threshold (see graph below).
An extension towards the solar equator of a southern polar coronal hole reached the central meridian early on March 27. This coronal hole is expected to be geo-effective.
The first days of the week, the Earth was inside the fast solar wind with a maximum value of about 650 km/s on March 25. The remaining days, the speed stayed between 450 and 350 km/s.
The sudden change of the magnetic field phi angle, at about 14:30 UT on March 26, and its stable value afterwards, indicated that the Earth crossed a sector boundary.
The solar wind parameter measured by ACE early March 28, indicated that an ICME had passed. The in situ interplanetary magnetic field (IMF) strength increased for about two days, with the maximum value of 16nT on March 29. The Bz component of the IMF was during short time intervals negative, with values up to -8nT. The solar origin of this ICME was not identified. The arrival of this ICME did not induced disturbed geomagnetic conditions.

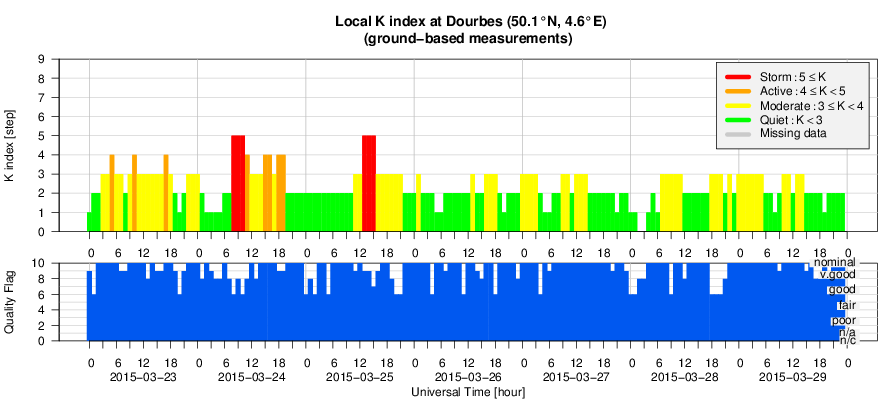

The geomagnetic conditions were quiet to unsettled during most of the week, as reported by Izmiran (K=2) and NOAA (Kp=2). The local station at Dourbes reported a value of K=5 during one interval on March 24 and during one interval on March 25. The high values of the K index reported by Dourbes were the combined result of local fluctuations of the magnetic field and the low reliability of the measurements.

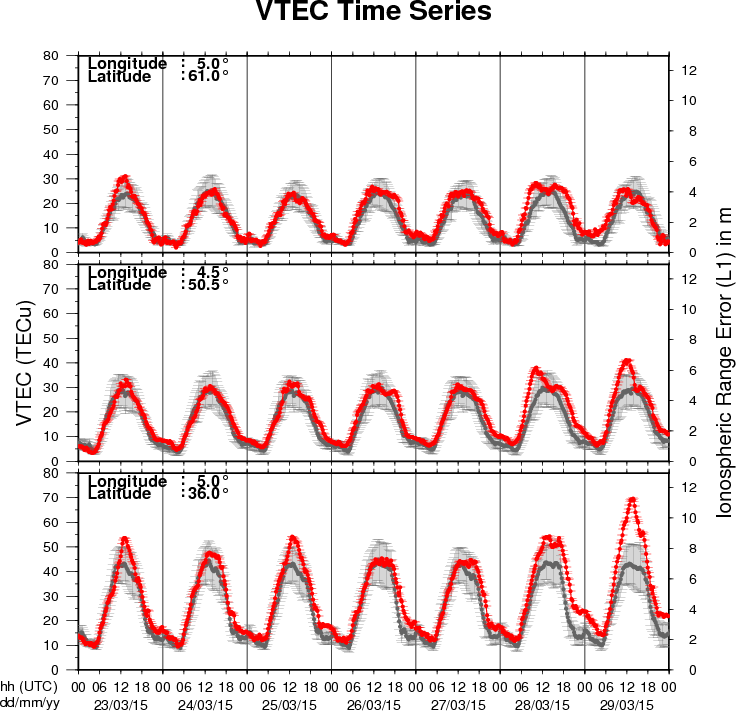

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
