The Solar-Terrestrial Centre of Excellence (STCE) is a collaborative network of the Belgian Institute for Space Aeronomy, the Royal Observatory of Belgium and the Royal Meteorological Institute of Belgium.
|
Published by the STCE - this issue : 11 Jun 2015. The Solar-Terrestrial Centre of Excellence (STCE) is a collaborative network of the Belgian Institute for Space Aeronomy, the Royal Observatory of Belgium and the Royal Meteorological Institute of Belgium. |
| Archive of the newsletters | Subscribe to this newsletter by mail |
A very nice filament eruption occurred near the north-western solar limb during the morning hours of 3 June 2015. It concerned the long filament already mentioned in the previous news item of 27 May 2015 (see http://www.stce.be/news/309/welcome.html), when it was still in the north-eastern quadrant.
Some amateur solar observers were able to capture impressive images of this eruption in H-alpha, a filter providing a view of the "cold" (about 10.000 degrees) inner solar atmosphere. Jean-Pierre Brahic (France) was able to make the extraordinary snapshot shown above at 07:37UT. The full-resolution image can be found at http://www.astrosurf.com/ubb/Forum3/HTML/044169.html . A side-by-side comparison with SDO/AIA 304 (extreme ultraviolet at 80.000 degrees) reveals some subtle differences (image below).
The filament rose even further until it reached a height of over 200.000 km about 30 minutes later. It towered so high above the solar surface, that it got out of SDO/AIA's field-of-view (FOV). Fortunately, PROBA2/SWAP was able to capture the eruption in its full extent with its wider FOV camera (see below; image taken at 07:57UT). Most of the material fell back on the Sun, but a narrow coronal mass ejection (CME) was associated to this eruption, moving in the west-south-western direction with a plane-of-the-sky speed of nearly 700 km/s. It was not aimed at our planet. A movie of the event can be found at https://youtu.be/Tp7qIfk6MJU .
Credits - Images were taken from SDO (http://sdo.gsfc.nasa.gov/data/aiahmi/), PROBA2 (http://proba2.oma.be/ssa), SOHO (http://sohowww.nascom.nasa.gov/home.html), and J.-P. Brahic (http://jp-brahic.chez-alice.fr/).
a brand new ESWW-poster, twelfth edition!
This time focussing on the humans behind our answer to space weather impacts.
Solar flare activity fluctuated between very low and low during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed:
http://proba2.oma.be/ssa
This page also lists the recorded flaring events.
A weekly overview movie can be found here (SWAP week 271).
http://proba2.oma.be/swap/data/mpg/movies/weekly_movies/weekly_movie_2015_06_01.mp4
Details about some of this week's events, can be found further below.
Eruption on the east limb @ 13:37 SWAP image
Find a movie of the events here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150601_swap_movie.mp4
Eruption on the west limb @ 06:03 SWAP image
Find a movie of the events here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150602_swap_movie.mp4
Eruption on the east limb @ 06:58 SWAP image
Find a movie of the events here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150602_swap_movie.mp4
Eruption on the east limb @ 02:58 SWAP image
Find a movie of the events here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150603_swap_movie.mp4
Failed eruption on the west limb @ 07:57 SWAP image
Find a movie of the events here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150603_swap_movie.mp4
Twelve active regions were observed during the week, with NOAA AR numbers 2355, 2356, 2357, 2358, 2359, 2360, 2361, 2362, 2363, 2364, 2365, 2366. The flaring activity was on the low C-level throughout the most of the week. The only exception was the C8.1 flare peaking at 09:47 UT on June 4 in the NOAA AR 2361 (Catania sunspot group 80). It was associated only with a weak and narrow CME.
A partial halo CME was detected by SOHO/LASCO on June 1. It first appeared in the LASCO C2 field of view at 13:48 UT and had the angular width around 200 degrees.
SDO/AIA observations of associated coronal dimmings and an EIT wave demonstrate that the CME originated from behind the north-east solar limb, so it did not have any geoeffective consequences.
A small low-latitude coronal hole in the southern hemisphere reached the solar central meridian on June 4 - see the green circle in the SDO/AIA picture below. The associated fast solar wind flow arrived at the Earth early on June 8 (see below).

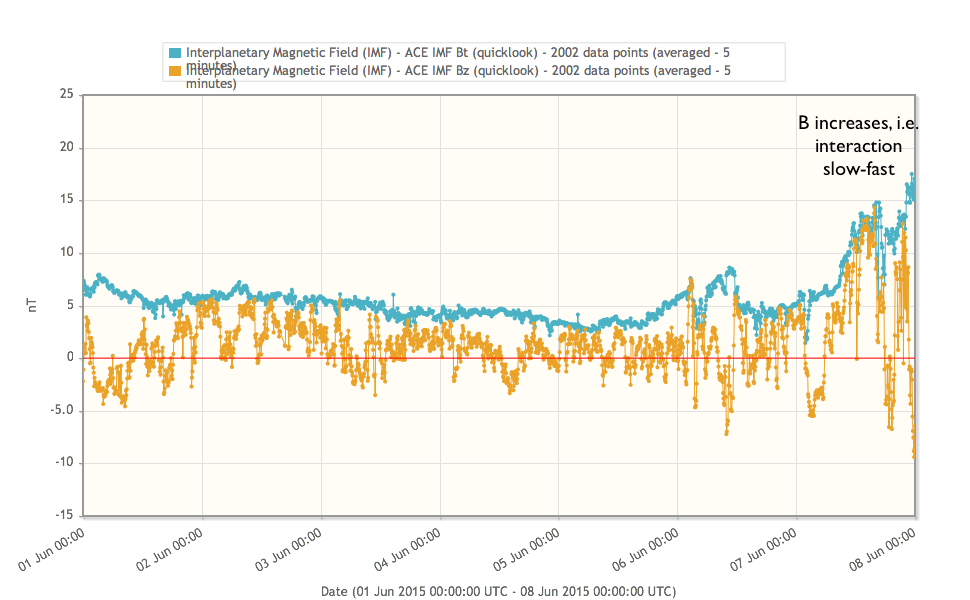

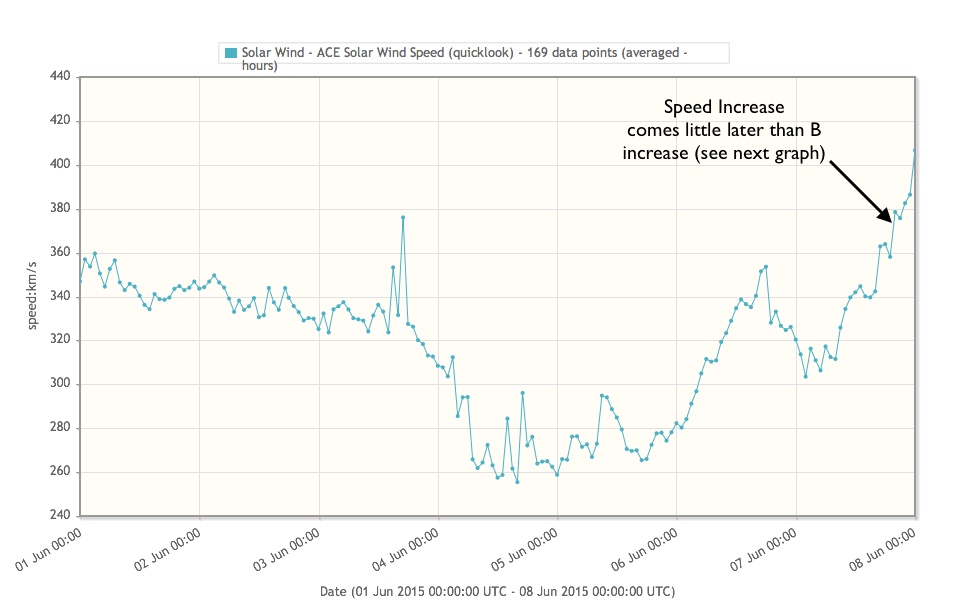

During the most of the week the Earth was situated inside a slow solar wind flow (see first graph), and the geomagnetic conditions were quiet. On June 7 the interplanetary magnetic field magnitude (see second graph) started to increase steadily in association with the sector boundary crossing that occurred around 02:00 UT on that day. This indicated the arrival of the interaction region between the slow and fast solar wind flows, with the fast flow emanating from the low-latitude coronal hole in the southern hemisphere (see above).

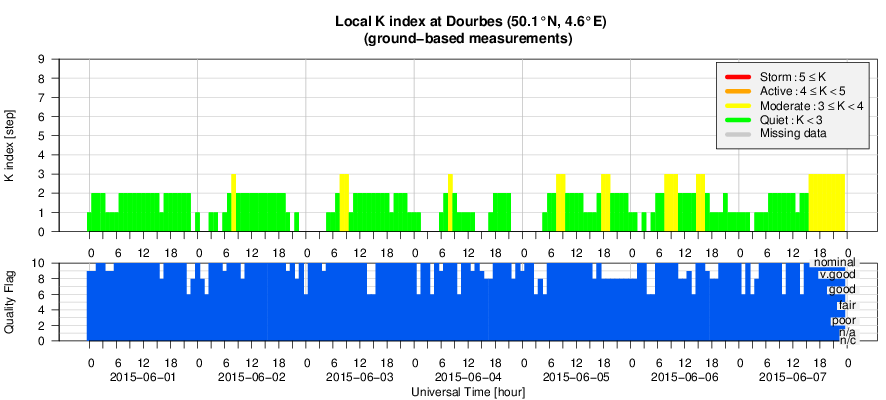

The geomagnetic conditions remained on the quiet to unsettled levels due to low solar wind speed. The corresponding fast flow arrived at the Earth on June 8 (outside of the reported period).

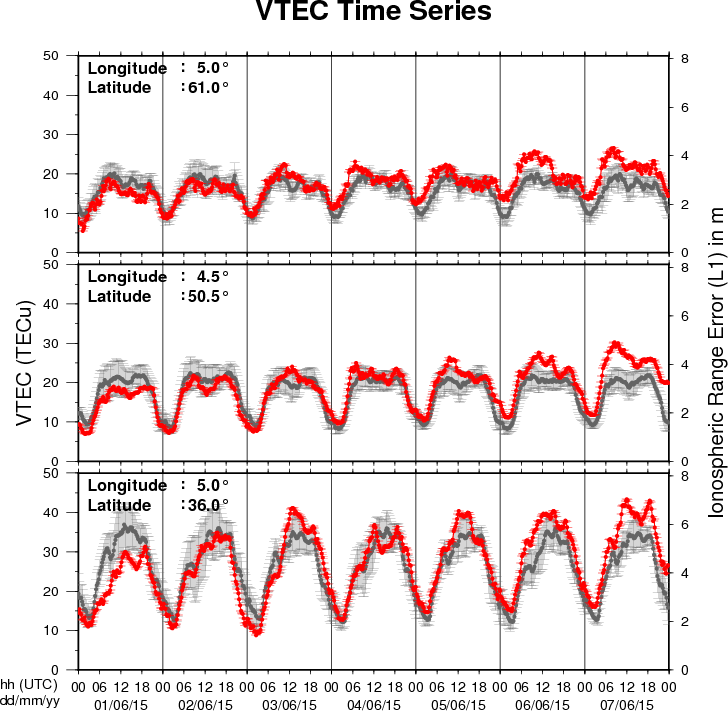

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
