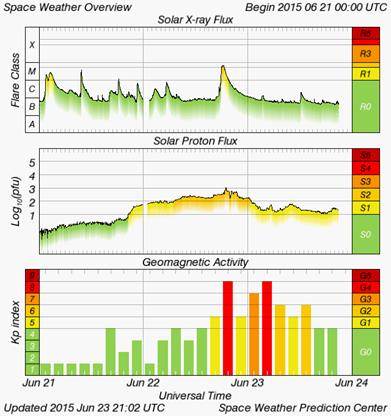

On 22 June 2015, the strongest proton event so far this year took place, with the greater than 10 MeV proton flux reaching 1070 pfu (proton flux units; Notes 1 and 2). It was only the 5th such event (more than 1000 pfu) so far this solar cycle (SC), and only the 41st since the start of systematic satellite measurements began in 1976. Interestingly, the maximum (19:00UT) coincided with a period of severe geomagnetic storming (Kp=8) from 18:00-21:00UT, and with a a moderate M6.5 flare peaking at 18:23UT. This was nicely illustrated by the overview chart from SWPC (image underneath).
It goes without saying that there are few of this kind of coincidences, not in the least because of the low number of strong proton events. Also, since 1976, there have only been about 500 X-class flares and 6000 M-class flares. Geomagnetically, there have been only about 500 3-hour periods with strong to (extremely) severe geomagnetic storming. So, it is obvious that the instances of strong geomagnetic storming and strong solar activity falling together with a strong radiation storm are quite rare.

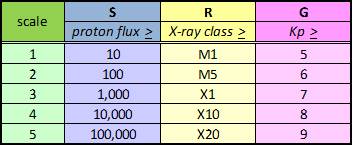

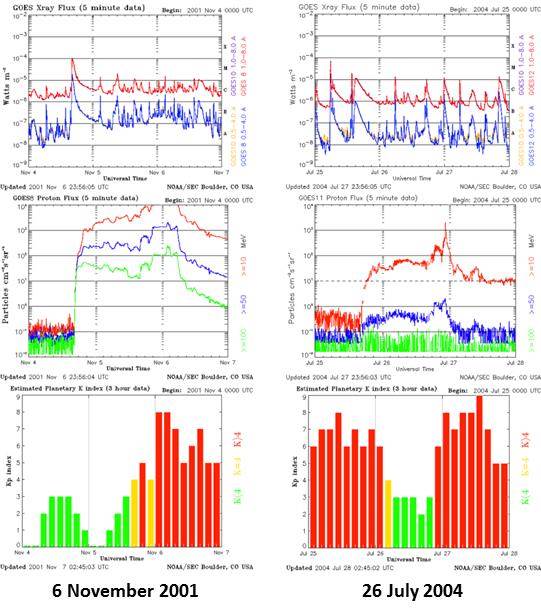

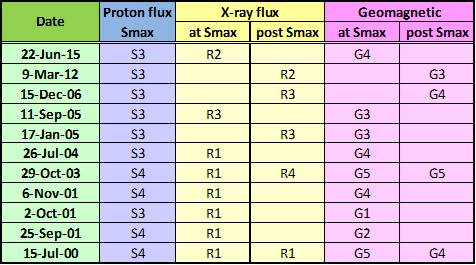

Using the NOAA charts and listings of all these events, a quick review covering SC23 and SC24 revealed that only 11 days satisfy the above conditions. These days are displayed in the table underneath, with the intensity of the individual storms as described according to the NOAA-scales (see http://www.swpc.noaa.gov/noaa-scales-explanation for a full description, and the second table underneath for a summary).
The Halloween period (29 October 2003) as well as the Bastille Day event (15 July 2000) are both having coinciding storms during and after the maximum proton flux (Smax). The graphs underneath provide other examples of coinciding storms: on the left the events from 6 November 2001, and on the right those from 26 July 2004. Each display the x-ray flux, proton flux, and evolution of the Kp-index. It is clear that when increased activity of these three fall together, the resulting space weather effects can be felt in all domains. A good thing this does not happen very frequently!
Note 1 - 10 MeV = 10 million eV. The eV (electron volt) is a very tiny amount of energy corresponding to about 0.16 billionth of a billionth of a Joule. For comparison, a flying mosquito has a kinetic energy of about a trillion eV (= 1000 billion eV).
Note 2 - pfu: proton flux unit. This is the number of particles registered per second, per square cm, and per steradian.
Credits - Data and imagery were obtained from NOAA's Warehouse (ftp://ftp.swpc.noaa.gov/pub/warehouse/), SWPC (http://umbra.nascom.nasa.gov/SEP/), NGDC (ftp://ftp.ngdc.noaa.gov/STP/space-weather/solar-data/solar-features/solar-flares/x-rays/goes/), and Helioviewer (http://helioviewer.org/#).
During the first 2 days of the period, flaring activity was dictated by NOAA 2381. This active region produced a total of 17 C-class and 2 M-class flares in 48 hours, the strongest flare being an M1.7 flare peaking on 06 July at 20:40UT. NOAA 2381 then quickly simplified and the flaring activity stalled. The other regions were mostly quiet.
Several filament and prominence eruptions were observed, but none of the associated coronal mass ejections (CMEs) had an obvious earth-directed component. The most prominent CME was about 150 degrees wide and first observed by LASCO/C2 on 09 July at 23:36UT. It seems to have been the result of a series of slow eruptions along a lengthy filament channel near -45 degrees latitude. The bulk of the ejected material was directed well south of the ecliptic.

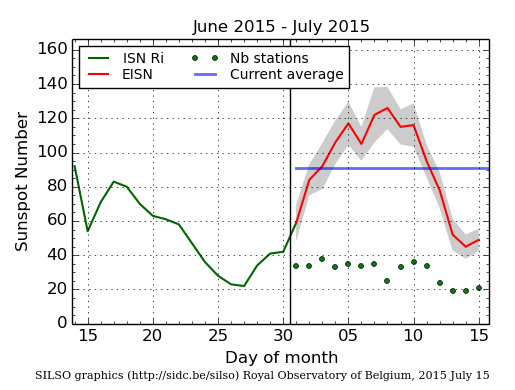

Daily Estimated International Sunspot Number (EISN, red curve with shaded error) derived by a simplified method from real-time data from the worldwide SILSO network. It extends the official Sunspot Number from the full processing of the preceding month (green line). The plot shows the last 30 days (~ one solar rotation). The horizontal blue line shows the current monthly average, while the green dots give the number of stations included in the calculation of the EISN for each day.
| DAY | BEGIN | MAX | END | LOC | XRAY | OP | 10CM | TYPE | Cat | NOAA |
| 06 | 0824 | 0844 | 0859 | N17E42 | M1.0 | SN | 2381 | |||
| 06 | 2032 | 2040 | 2050 | N18E36 | M1.7 | 2N | 2381 |
| LOC: approximate heliographic location | TYPE: radio burst type |
| XRAY: X-ray flare class | Cat: Catania sunspot group number |
| OP: optical flare class | NOAA: NOAA active region number |
| 10CM: peak 10 cm radio flux |

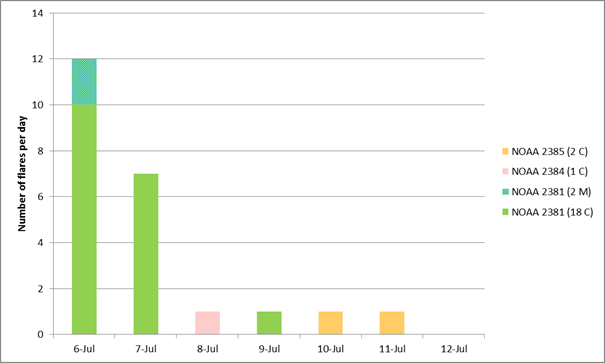

Solar flare activity fluctuated between very low and moderate during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed:
http://proba2.oma.be/ssa
This page also lists the recorded flaring events.
A weekly overview movie can be found here (SWAP week 276).
http://proba2.oma.be/swap/data/mpg/movies/weekly_movies/weekly_movie_2015_07_06.mp4
Details about some of this week’s events, can be found further below.
Plasma dynamics on the north west limb @ 10:47 SWAP image
Find a movie of the event here (SWAP movie)
http://proba2.oma.be/swap/data/mpg/movies/20150710_swap_movie.mp4

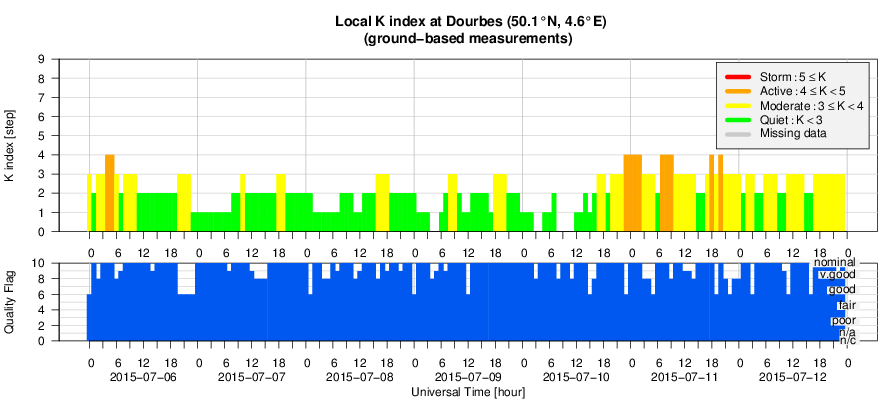

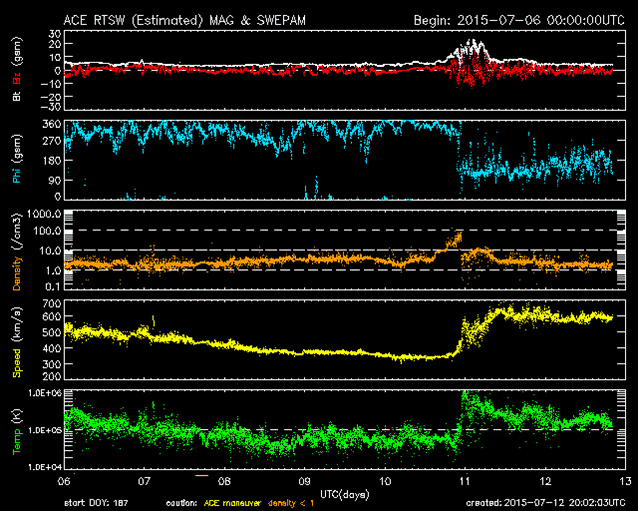

At the beginning of the period, solar wind was under the waning influence of the high speed stream (HSS) of a negative coronal hole (CH). Active geomagnetic conditions were recorded. During the subsequent days, quiet to unsettled conditions were recorded, until the arrival of a co-rotating interaction region (CIR) preceding the HSS of a positive equatorial CH on 10 July. Wind speed increased to values near 650 km/s, and Bz oscillated between -14 and +14 nT. This resulted in active conditions in Dourbes, and some minor storm conditions (Kp = 5) during the 21:00-24:00UT (10 July) and 03:00-06:00UT (11 July) periods. At the end of the week, solar wind speed was still high near 600 km/s.

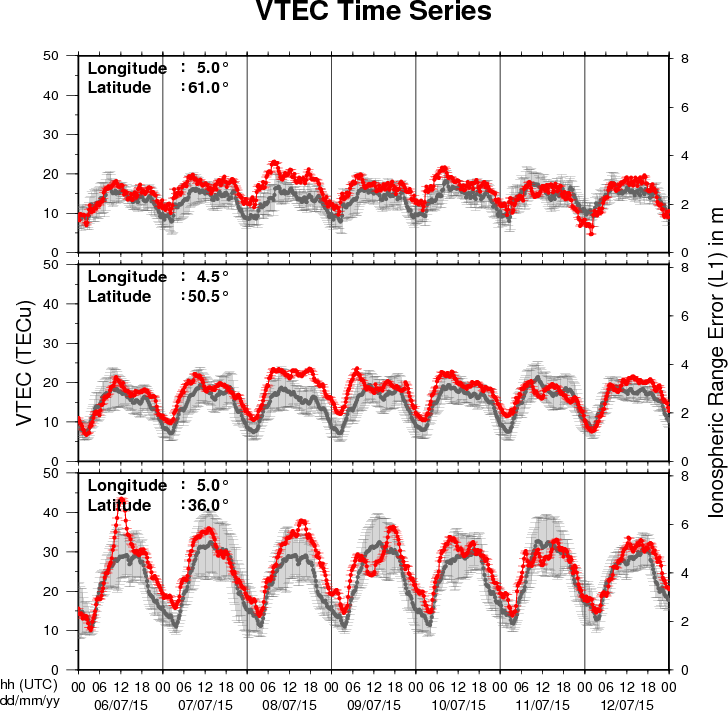

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.
The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.
See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
