PROBA2 Observations (15 May 2017 - 21 May 2017)

Solar Activity

Solar flare activity remained very low during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed: http://proba2.oma.be/ssa
This page also lists the recorded flaring events.

A weekly overview movie can be found here (SWAP week 373):
http://proba2.oma.be/swap/data/mpg/movies/weekly_movies/weekly_movie_2017_05_15.mp4

Details about some of this week's events, can be found further below.

If any of the linked movies are unavailable they can be found in the P2SC movie repository here:
http://proba2.oma.be/swap/data/mpg/movies/

Tuesday May 16

NOAA active region 2657 produced two B-flares during the week, including the largest flare of the week (a B2.2 flare) on 2017-May-16. The active region can be seen in the north-east quadrant of the Sun in the SWAP image above.
Find a movie of the flaring events here (SWAP movie):
http://proba2.oma.be/swap/data/mpg/movies/20170516_swap_movie.mp4

Review of solar and geomagnetic activity (15 May 2017 - 21 May 2017)

SOLAR ACTIVITY

The GOES X-ray background was below B1 level throughout the week. The only sunspot regions present were NOAA AR 2656 (alpha, beta), 2657 (alpha) and 2658 (beta), which produced a few low B flares.

GEOMAGNETIC ACTIVITY

A high speed stream from a positive coronal hole arrived at Earth near midday on May 15, with maximum solar wind speed of about 680 km/s and maximal magnitude of the Interplanetary Magnetic Field (IMF) around 17 nT.
Late on May 17, enhanced IMF and low solar wind temperature were registered, probably due to a glancing blow from the CME of May 13. High speed stream influence waned from May 17 onwards. Since there were no periods with consistent southward Bz, only a few active geomagnetic periods (K Dourbes = 4) were registered. A high speed stream from a negative equatorial coronal hole arrived late on May 18, with maximum solar wind speed of about 750 km/s and maximal magnitude of the Interplanetary Magnetic Field (IMF) around 15 nT. Several intervals with active geomagnetic conditions were recorded.

The SIDC Space Weather Briefing (SWB)

Check SWB movie 1, SDO/HMI - magnetogram + visible light: http://www.stce.be/movies/1JHV_20170522.mp4
Check SWB movie 2, same as movie 1 but now with the JHelioviewer tracking device: http://www.stce.be/movies/2JHV_20170522.mp4
Check SWB movie 3, SDO/AIA: http://www.stce.be/movies/3JHV_20170522.mp4

The International Sunspot Number

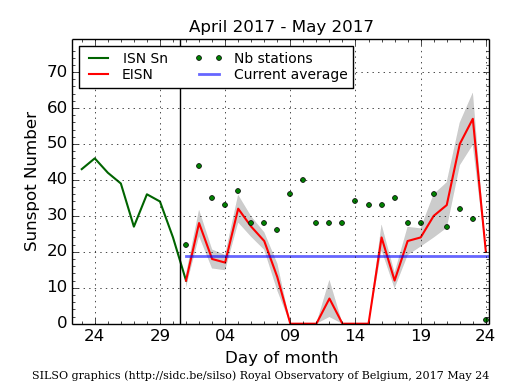

The daily Estimated International Sunspot Number (EISN, red curve with shaded error) derived by a simplified method from real-time data from the worldwide SILSO network. It extends the official Sunspot Number from the full processing of the preceding month (green line). The plot shows the last 30 days (about one solar rotation). The horizontal blue line shows the current monthly average, while the green dots give the number of stations included in the calculation of the EISN for each day.

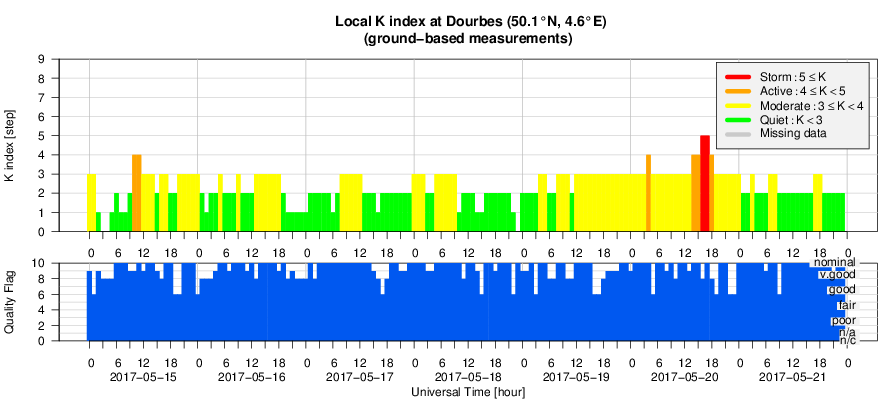

Geomagnetic Observations at Dourbes (15 May 2017 - 21 May 2017)

Review of ionospheric activity (15 May 2017 - 21 May 2017)

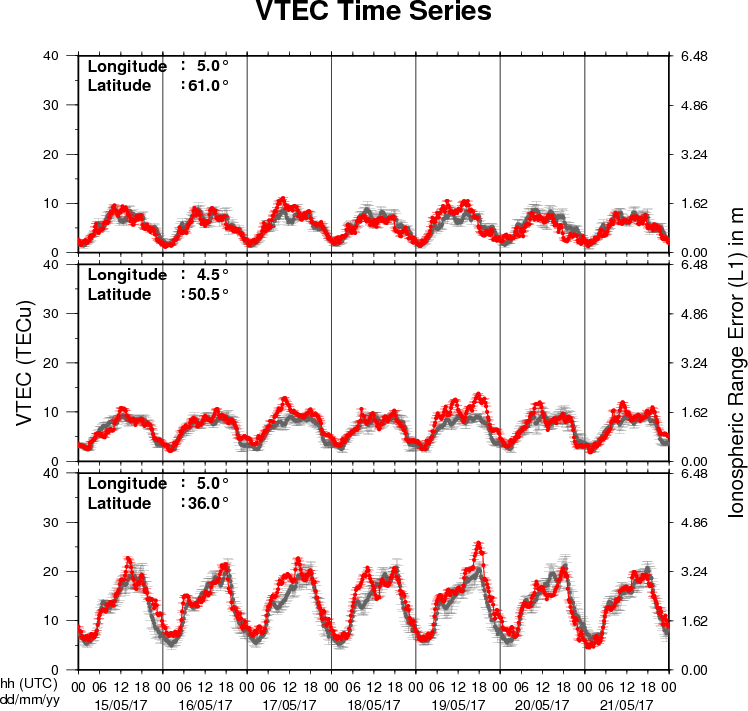

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.

The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.

See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
