PROBA2 Observations (7 Aug 2017 - 13 Aug 2017)

Solar Activity

Solar flare activity remained very low during the week.
In order to view the activity of this week in more detail, we suggest to go to the following website from which all the daily (normal and difference) movies can be accessed: http://proba2.oma.be/ssa
This page also lists the recorded flaring events.

A weekly overview movie can be found here (SWAP week 385):
http://proba2.oma.be/swap/data/mpg/movies/weekly_movies/weekly_movie_2017_08_07.mp4

Details about some of this week's events, can be found further below.

If any of the linked movies are unavailable they can be found in the P2SC movie repository here:
http://proba2.oma.be/swap/data/mpg/movies/

Monday Aug 07

NOAA active region 2670 was situated in the centre of the disc from the beginning of the week. Although there were no flares observed from this or any other region during the week, SWAP did observe a small eruption from AR2670 on 2017-Aug-07 towards the south-east at 04:19 UT in the image above.
Find a movie of the events here:
http://proba2.oma.be/swap/movies/20170807_swap_movie.mp4 (SWAP movie)
and here:
http://proba2.oma.be/swap/movies/20170807_swap_diff.mp4 (SWAP difference movie)

Sunday Aug 13

By the end of the week on 2017-Aug-13 there were no active regions visible on the solar disk, however, bright loops associated with AR2671 are just beginning to appear on the eastern limb of the Sun at 23:44 UT, shown in the SWAP image above.
Find a movie of the events here:
http://proba2.oma.be/swap/movies/20170813_swap_movie.mp4 (SWAP movie)

Review of solar activity

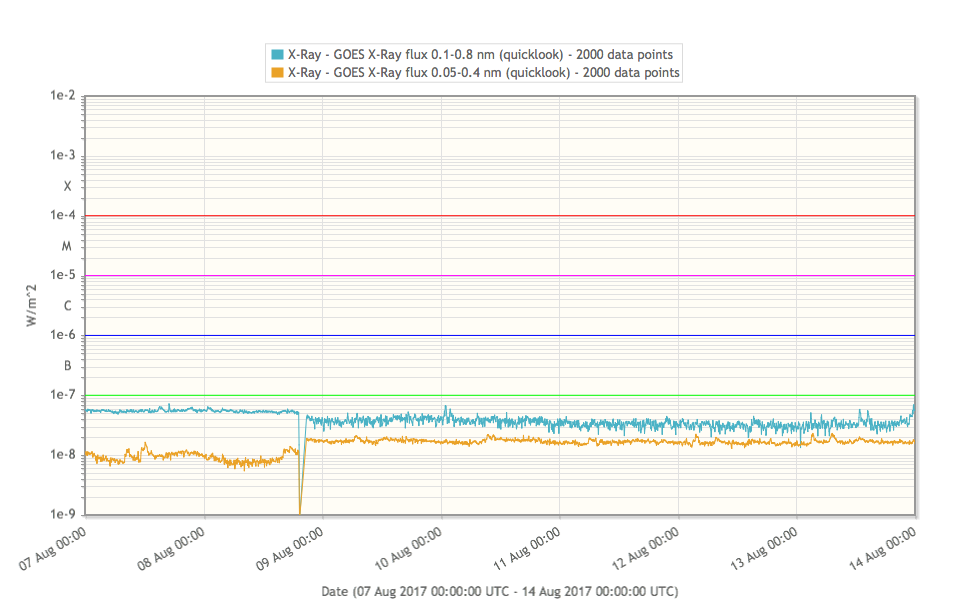

Over the past week solar activity has been very low. No significant flares have been recorded.

Active Region (AR) 2670 (Mcintosh class:Hsx; Mag. type:Alpha) was the only AR on the solar disk throughout the week - see picture below of the SDO satellite in visible light taken with the HMI instrument, but did not produce any significant activity.

No Earth directed Coronal Mass Ejections (CMEs) have been detected.
The greater than 10MeV proton flux remained at background levels.

The International Sunspot Number

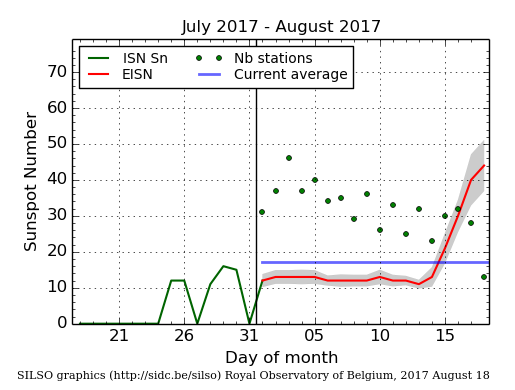

The daily Estimated International Sunspot Number (EISN, red curve with shaded error) derived by a simplified method from real-time data from the worldwide SILSO network. It extends the official Sunspot Number from the full processing of the preceding month (green line). The plot shows the last 30 days (about one solar rotation). The horizontal blue line shows the current monthly average, while the green dots give the number of stations included in the calculation of the EISN for each day.

Review of geomagnetic activity

The solar wind speed decreased from around 600 km/s at the beginning of the week to around 350 km/s in the middle of the week before slowly increasing again to around 700 km/s at the end of the week.

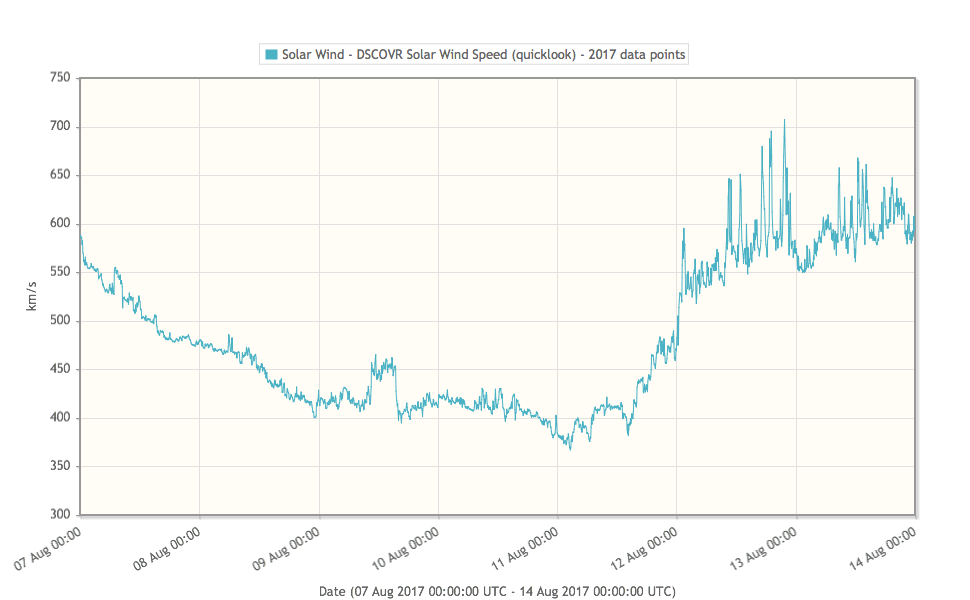

Check the graph below showing the solar wind speed measured by the spacecraft DSCOVR at the L1 point.

The total magnetic field strength (Bt) fluctuated between 5 and 10 nT. The Bz component fluctuated around 0 nT but was mainly positive.

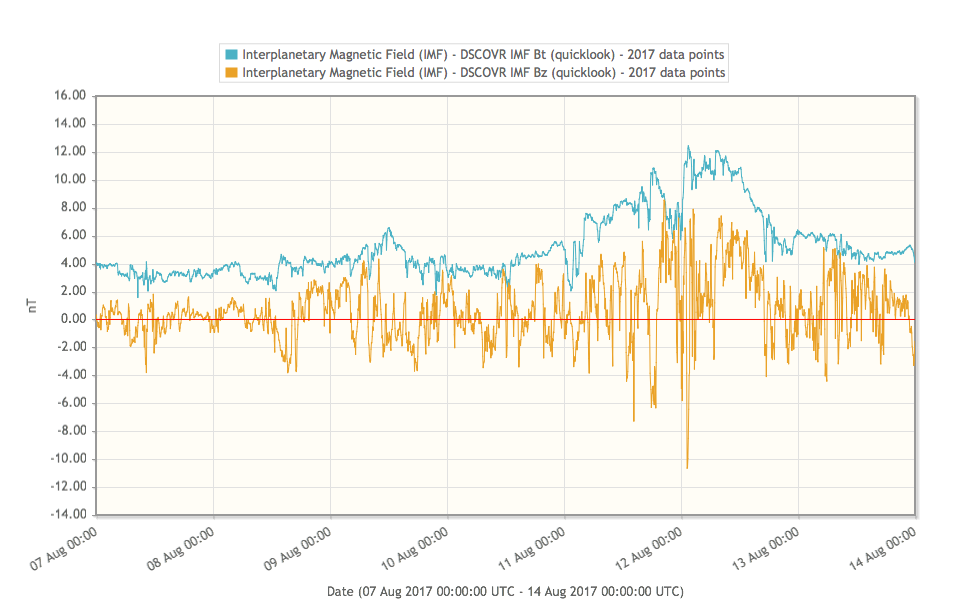

Check the graph below showing Bt and Bz measured by the spacecraft DSCOVR at the L1 point.

Geomagnetic conditions ranged between Kp index 0-3 (NOAA) and local K index 0-3 (Dourbes).

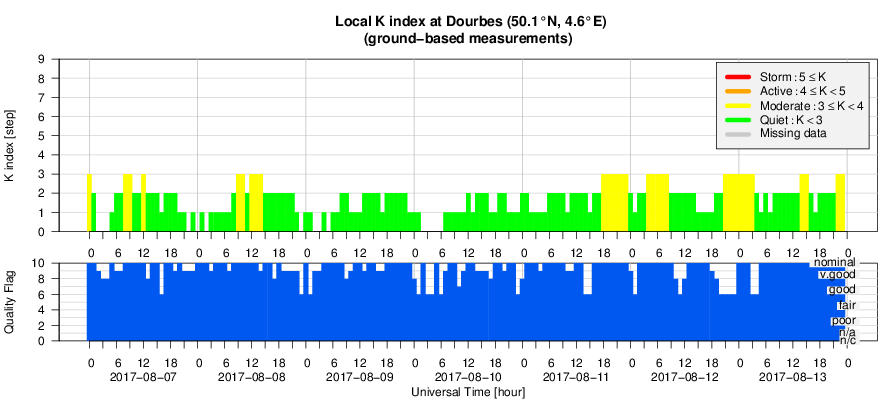

Geomagnetic Observations at Dourbes (7 Aug 2017 - 13 Aug 2017)

Review of ionospheric activity (7 Aug 2017 - 13 Aug 2017)

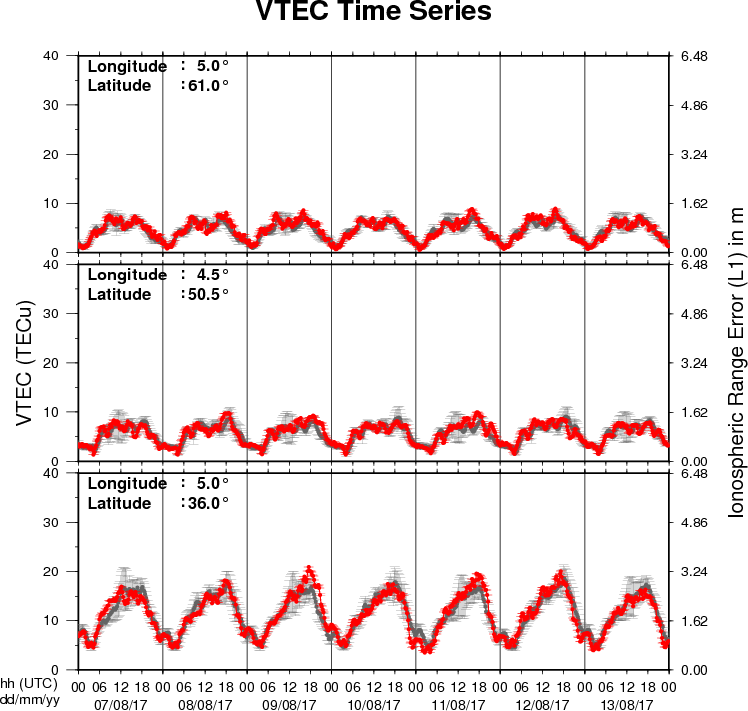

The figure shows the time evolution of the Vertical Total Electron Content (VTEC) (in red) during the last week at three locations:
a) in the northern part of Europe(N61°, 5°E)
b) above Brussels(N50.5°, 4.5°E)
c) in the southern part of Europe(N36°, 5°E)
This figure also shows (in grey) the normal ionospheric behaviour expected based on the median VTEC from the 15 previous days.

The VTEC is expressed in TECu (with TECu=10^16 electrons per square meter) and is directly related to the signal propagation delay due to the ionosphere (in figure: delay on GPS L1 frequency).
The Sun's radiation ionizes the Earth's upper atmosphere, the ionosphere, located from about 60km to 1000km above the Earth's surface.The ionization process in the ionosphere produces ions and free electrons. These electrons perturb the propagation of the GNSS (Global Navigation Satellite System) signals by inducing a so-called ionospheric delay.

See http://stce.be/newsletter/GNSS_final.pdf for some more explanations ; for detailed information, see http://gnss.be/ionosphere_tutorial.php
